Cruise Control Combination Switch Test/Replacement

There are SRS components located in this area. Review the SRS COMPONENT LOCATION INDEX and PRECAUTIONS AND PROCEDURES in the SRS before doing repairs or service.

1. Remove the driver's airbag (see DRIVER'S AIRBAG REPLACEMENT ).
2. Disconnect the connectors, then remove the switch.

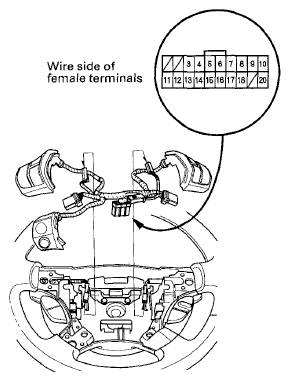

   Fig 1: Identifying Switch Connectors Terminals

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Check for continuity between the terminals in each switch position according to the table below.
   • If there is continuity, and it matches the table, but switch failure occurred on the cruise control input test, check and repair the wire harness on the switch circuit.
   • If there is no continuity in one or both positions, replace the switch.

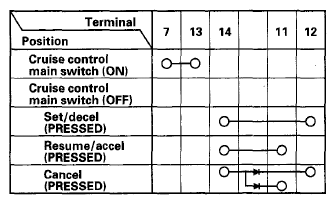

   Fig 2: Identifying Connectors Terminals Continuity Table

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Check for continuity between the terminals according to the table below.
   • If there is continuity, and it matches the table, check and repair the wire harness on the switch circuit.
   • If there is no continuity in one or more positions, replace the switch.
   Fig 3: Identifying Connectors Terminals Continuity Table

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
