Driver's Climate Control Switch Connector View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

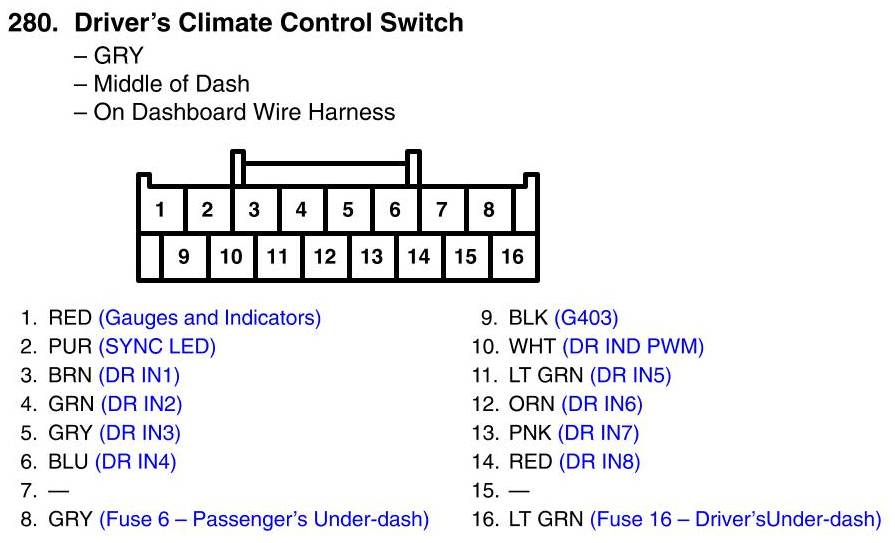

Driver's Climate Control Switch Connector View
