Power Distribution Relay
>>
Front Accessory Power Socket Relay Or Headlight Washer Relay And Console Accessory Power Socket Relay Connector View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

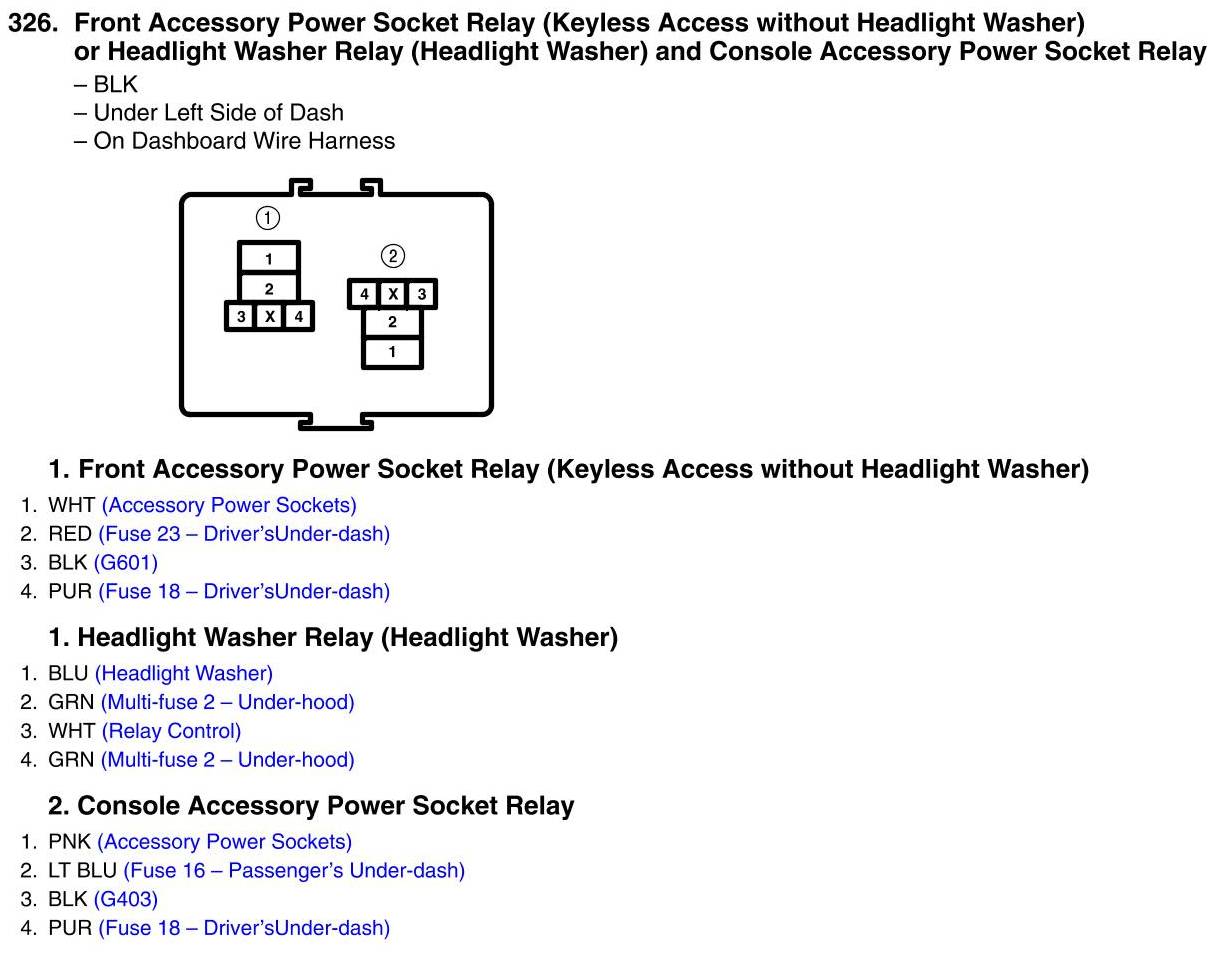

Front Accessory Power Socket Relay Or Headlight Washer Relay And Console Accessory Power Socket Relay Connector View
