AcuraLink Control Unit Connector End View (XM Receiver) (AcuraLink) (View 320)
- GRY
- Behind Middle of Dash

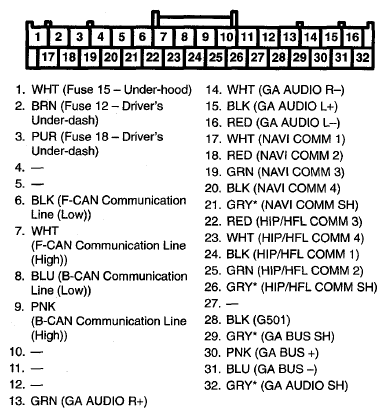

Connector A
- On Audio Wire Harness
* = The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.

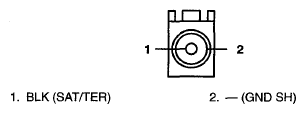

Connector B
- On XM Antenna Lead
