Electrical Compass Unit Connector End View (Without Navigation) (View 210)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Electrical Compass Unit Connector End View (Without Navigation) (View 210)
BLU
Middle of Rear Shelf
On Right Side Wire Harness

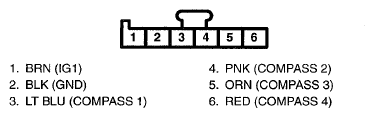

Fig 1: Electrical Compass Unit Connector Terminal (Without Navigation) (View 210)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
