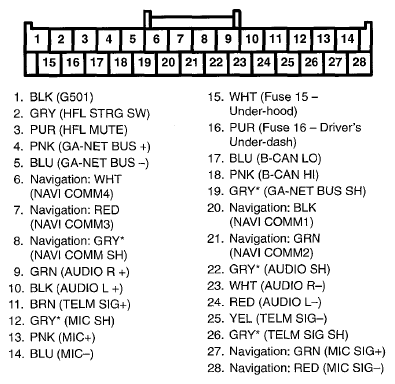

HandsFreeLink Control Unit Connector End View (View 306)

• GRY
• Behind Middle of Dash
• On Audio Wire Harness
  Fig 1: HandsFreeLink Control Unit Connector Terminal (View 306)

  Courtesy of AMERICAN HONDA MOTOR CO., INC.

* = The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.
