Immobilizer-Keyless Control Unit Connector End View (Without Keyless Access) (View 229)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Immobilizer-Keyless Control Unit Connector End View (Without Keyless Access) (View 229)
WHT
In Steering Column Cover
On Dashboard Wire Harness

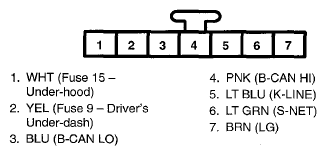

Fig 1: Immobilizer-Keyless Control Unit Connector Terminal (Without Keyless Access) (View 229)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
