Power Control Unit Connector End View (Keyless Access) (View 340)

Under Left Side of Dash
Connector A
- WHT
- On Dashboard Wire Harness

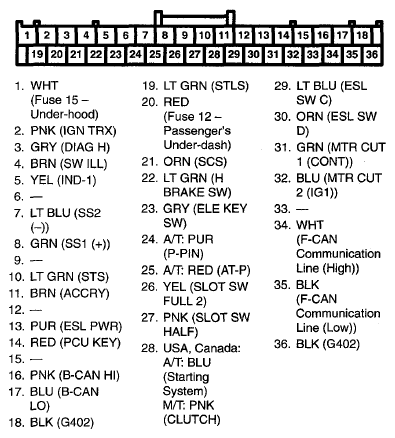

  Fig 1: Power Control Unit Connector Terminal (Keyless Access) (Connector A) (View 340)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector B
- WHT
- On Dashboard Wire Harness

  Fig 2: Power Control Unit Connector Terminal (Keyless Access) (Connector B) (View 340)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connector C
- LT BLU
- On Dashboard Wire Harness

  Fig 3: Power Control Unit Connector Terminal (Keyless Access) (Connector C) (View 340)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
