Fuse-To-Components Index

Fuse Number	Fuse Name	Amps	See	Component or Circuit Protected	Notes
1	H/L R HI	10A	ALL MODELS	Passenger's MICU, Right Headlight (High Beam)
2	SMALL (EXTR) R	10A	ALL MODELS	Passenger's MICU, Passenger's Under-dash Fuse/Relay Box Fuse 6, Right Front Side Marker Light, Right Front Turn Signal/Parking Light
3	FR FOG R	10A	ALL MODELS	Passenger's MICU, Right Fog Light
4	H/L R LO	15A	ALL MODELS	Passenger's MICU, Right Headlight (Low Beam)
5	-	-	ALL MODELS	Not Used
6	SMALL (INTR)	7.5A	ALL MODELS	A/T Gear Position Indicator Panel Light (A/T), Audio Remote Switch and HFL-Voice Control Switch, Audio Unit (without Navigation), Audio/Navigation Switch Panel (Navigation), Audio-HVAC Display Unit (without Navigation), Center Pocket Light, Cigarette Lighter Light (Mexico), Climate Control Unit, Cruise Control Combination/Select/Reset/Information Switch, Console Box Light, Dash Lights Brightness Controller, Driver's Climate Control Switch, Driver's Footwell Light, Driver's Seat Heater Switch, Front Passenger's Climate Control Switch, Front Passenger's Footwell Light, Front Passenger's Seat Heater Switch, Glove Box Light, Hazard Warning Switch, Headlight Washer Switch (Headlight Washer), HFL-Voice Control Switch (Navigation), Moonroof Switch, Rear Individual Map Lights, Roof Console, VSA OFF Switch
7	-	-	ALL MODELS	Not Used
8	AS P/SEAT (REC)	20A	ALL MODELS	Front Passenger's Power Seat Adjustment Switch
9	AS P/SEAT (SLIDE)	20A	ALL MODELS	Front Passenger's Power Seat Adjustment Switch
10	DOOR LOCK R	10A	ALL MODELS	Door Lock Relay, Door Unlock Relay
11	P/W R REAR	20A	ALL MODELS	Right Rear Power Window Relay
12	SMART	10A	ALL MODELS	Electric Steering Lock Control Unit (Keyless Access), Engine Start/Stop Switch (Keyless Access), Power Control Unit, (Keyless Access) Remote Slot (Keyless Access), Remote Slot Control Unit (Keyless Access)
13	P/W AS	20A	ALL MODELS	Front Passenger's Power Window Switch
14	-	-	ALL MODELS	Not Used
15	PREMIUM AMP	20A	ALL MODELS	Stereo Amplifier

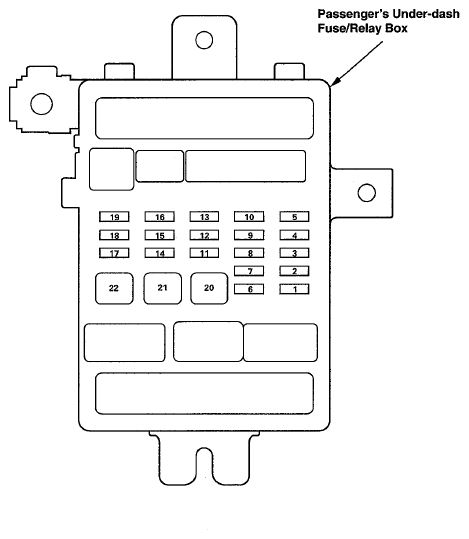

Fig 1: Passenger's Under -Dash Fuse/Relay Box (6-7)

G07755108

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fuse Number	Fuse Name	Amps	See	Component or Circuit Protected	Notes
16	CTR ACC SOCKET	20A	ALL MODELS	Console Accessory Power Socket Relay
17	-	-	ALL MODELS	Not Used
18	LUMBAR SUPPORT	7.5A	ALL MODELS	Driver's Power Lumbar Support Switch
19	SEAT HEATER	20A	ALL MODELS	Driver's Seat Heater Relay (High), Driver's Seat Heater Relay (Low), Front Passenger's Seat Heater Relay (High), Front Passenger's Seat Heater Relay (Low)
20	-	-	ALL MODELS	Not Used
21	-	-	ALL MODELS	Not Used
22	-	-	ALL MODELS	Not Used

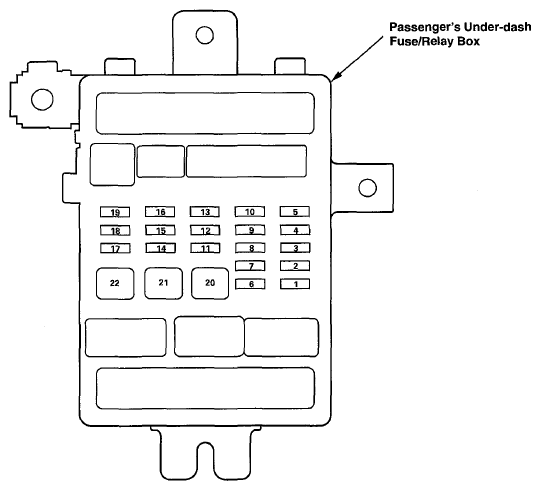

Fig 2: Passenger's Under -Dash Fuse/Relay Box (6-9)

G07755109

Courtesy of AMERICAN HONDA MOTOR CO., INC.
