IG1A Relay and IG2 Relay Connector View (Remote Starting System (Acura Accessory: Keyless Access))
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

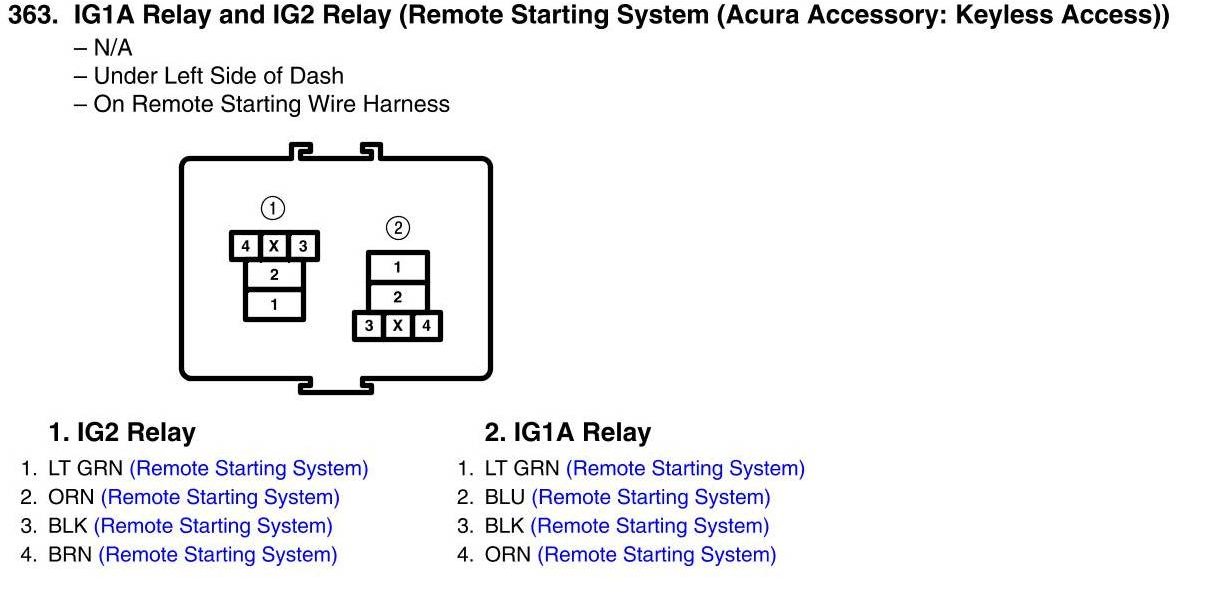

IG1A Relay and IG2 Relay Connector View (Remote Starting System (Acura Accessory: Keyless Access))
