Accelerator Pedal Module Removal and Installation: Installation

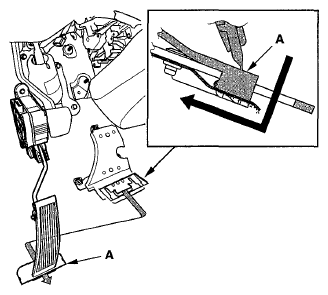

  1. Install the accelerator pedal module (A), then slide it until it locks with a clicking sound
    Fig 1: Identifying Accelerator Pedal Module
    G05992435Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install a new clip (A)
    NOTE:
    • Make sure that the accelerator pedal module and the clip are secure
    • The clip must be replaced whenever a new accelerator pedal module is installed
      • Fig 2: Clip With Torque Specifications
      G05992436Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the nuts (B), and connect the accelerator pedal module connector (C)
