System Specifications

Auto-tensioner 12 Nm (1.2 kgf-m, 8.7 ft lb)

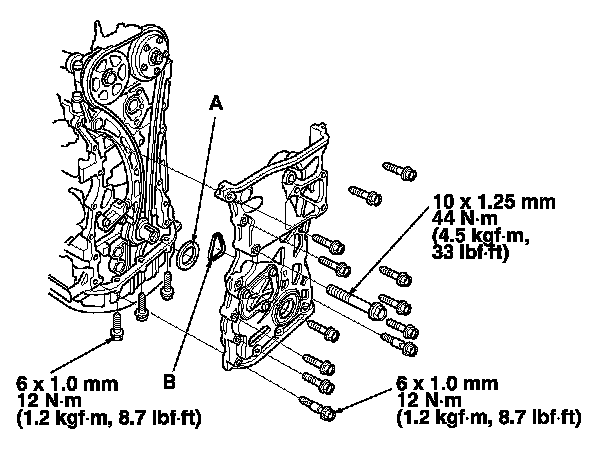

Timing cover





Crankshaft Pulley
Used crank and pulley 49 N-m (5.0 kgf-m, 36 ft lb)
Tighten additional 90 °

New pulley or crank
Tightening torque 177 Nm (18.0 kgf-m, 130 ft lb)
Remove bolt
Re-tighten 49 N-m (5.0 kgf-m, 36 ft lb)
Tighten additional 90 °
