Navigation System Voice Control Switch Test

Navigation System Voice Control Switch Test

1. Remove the driver's airbag assembly. Driver's Airbag Replacement

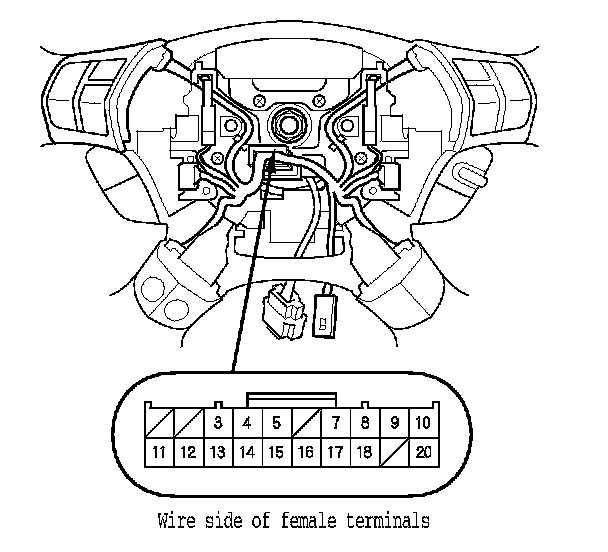

2. Remove the 20P connector from the cable reel.

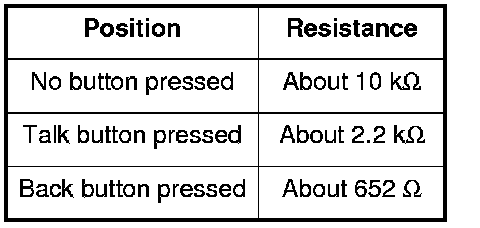

3. Measure the resistance between the No. 18 and No. 20 terminals in each switch position according to the table.





4. If the resistance is not as specified, replace the remote switch, Overhaul and replace the voice control switch. Overhaul

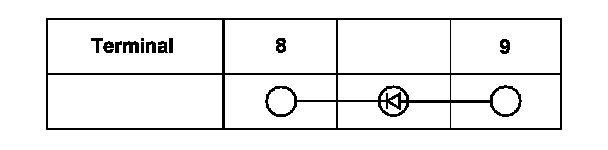

5. Use a diode tester between the terminals in each switch position according to the table.

6. If the diode test is not as specified, replace the remote switch, Overhaul and replace the voice control switch. Overhaul
