Audio Remote Switch/HFL-Navigation Voice Control Switch Connector View (Navigation)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

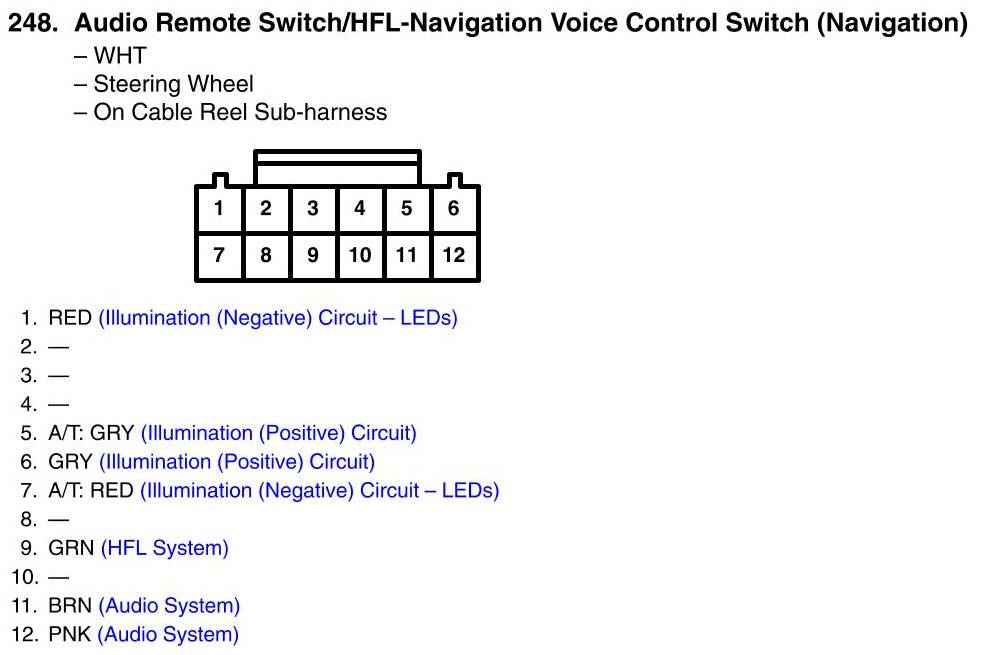

Audio Remote Switch/HFL-Navigation Voice Control Switch Connector View (Navigation)
