VSA Modulator-Control Unit Connector View
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

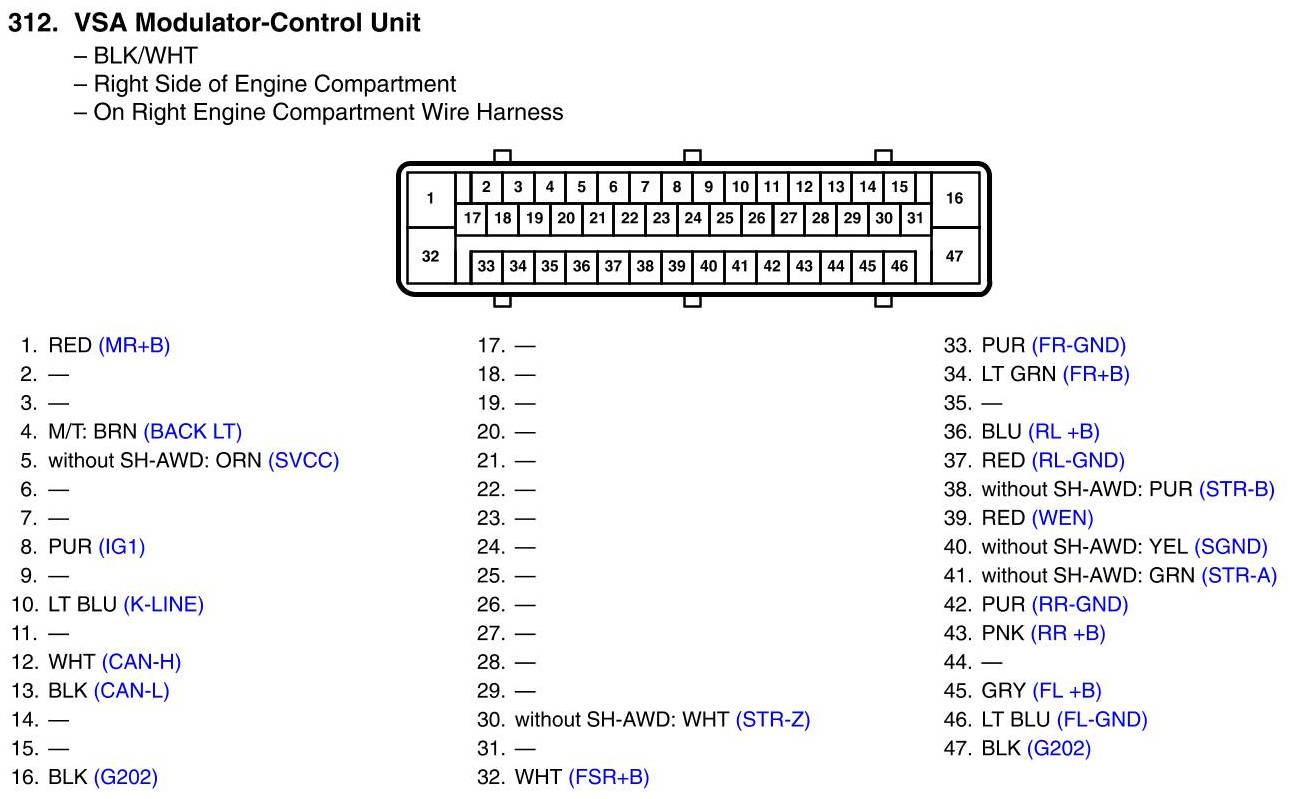

VSA Modulator-Control Unit Connector View
