Audio-Navigation Unit Connector D (14P)

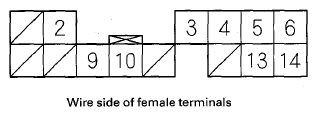

Fig 1: Identifying Audio-Navigation Unit Connector D (14P) Connector Terminals
G08054091Courtesy of AMERICAN HONDA MOTOR CO., INC.
Cavity Wire Color Terminal Name Connect to
D2-3 RED ACC XM receiver
D3 BRN(1) GA-NET BUS A SH Shield for terminals No. 9 and No. 10
D4 GRY(1) AUDIO SH Shield for terminals No. 5, No. 6, No. 13, and No. 14
D5 RED AUDIO R+ AcuraLink control unit (XM receiver)(2), XM receiver(3), HandsFreeLink control unit
D6 BLK AUDIO L+ AcuraLink control unit (XM receiver)(2), XM receiver(3), HandsFreeLink control unit
D9 GRN GA-NET BUS A+ AcuraLink control unit (XM receiver)(2), XM receiver(3)
D10 RED GA-NET BUS A- AcuraLink control unit (XM receiver)(2), XM receiver(3)
D13 WHT AUDIO R- AcuraLink control unit (XM receiver)(2), XM receiver(3), HandsFreeLink control unit
D14 GRN AUDIO L- AcuraLink control unit (XM receiver)(2), XM receiver(3), HandsFreeLink control unit
(1) The shielded wires have a heat-shrink tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.
(2) With AcuraLink
(3) Without AcuraLink
