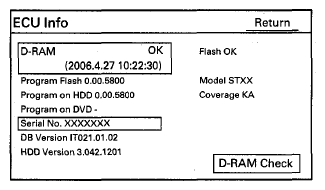

ECU Info.
This screen looks for problems in the audio-navigation unit. When you initiate this diagnosis, the audio-navigation unit may freeze or delay up to a minute while the diagnosis runs.
- D-RAM is NG, replace the audio-navigation unit.
- Program Flash: Displays the version of the navigation software in memory.
- Program on HDD: If displayed, this value represents the version of the navigation software on the audio-navigation unit HDD.
- Program on DVD: If displayed, this value represents the version of the navigation software on the audio-navigation unit DVD.
- Serial No. should be the same as the serial number found on the underside of the audio-navigation unit. You need this number to obtain the security code from the interactive Network (iN) system.
- DB Version: Displays the version of the DB on the audio-navigation unit HDD.
- HDD Version: Display the version of the HDD.
- D-RAM check is for factory use only.
