Left Power Tailgate Pinch Sensor Connector End View

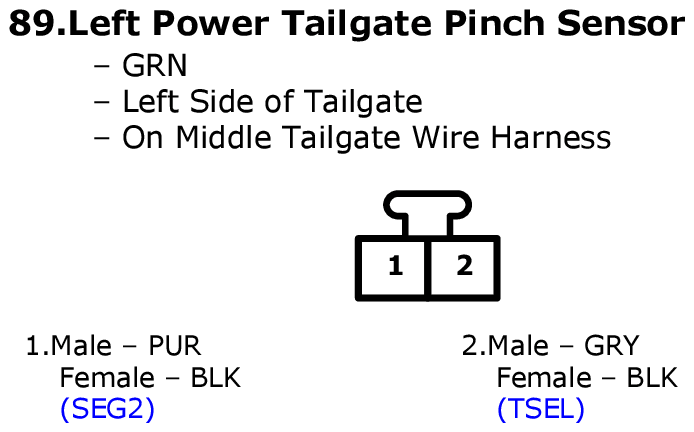

Fig 1: Left Power Tailgate Pinch Sensor Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
