Rear A/F Sensor (B1, S1) Connector View
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

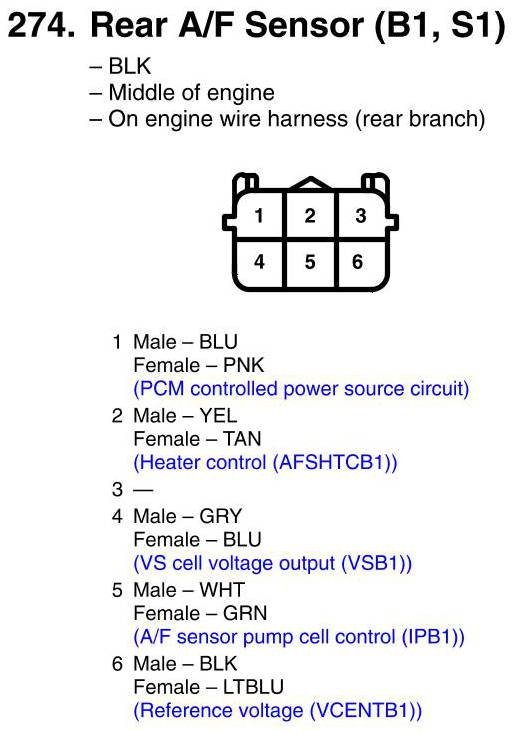

Rear A/F Sensor (B1, S1) Connector View
