View 249 - Combination Light Switch Connector View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

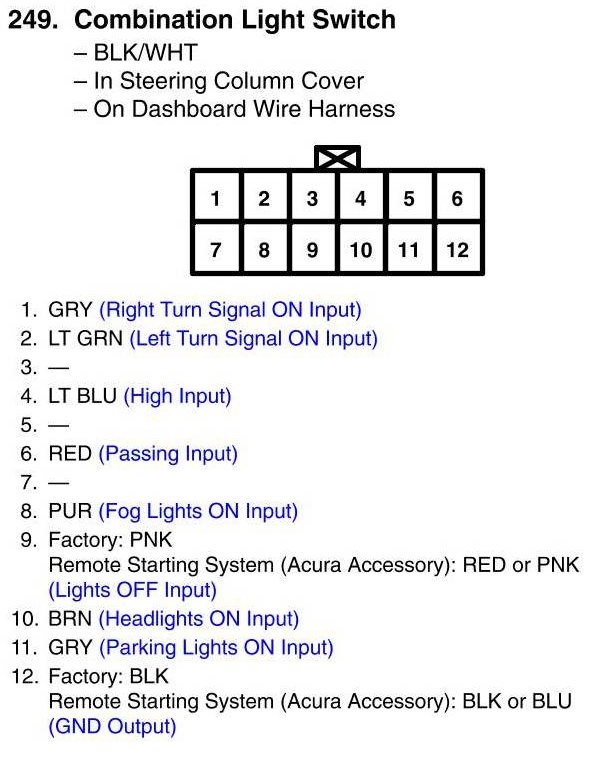

View 249 - Combination Light Switch Connector View
