Fuse: Locations




Fuse to Components Index

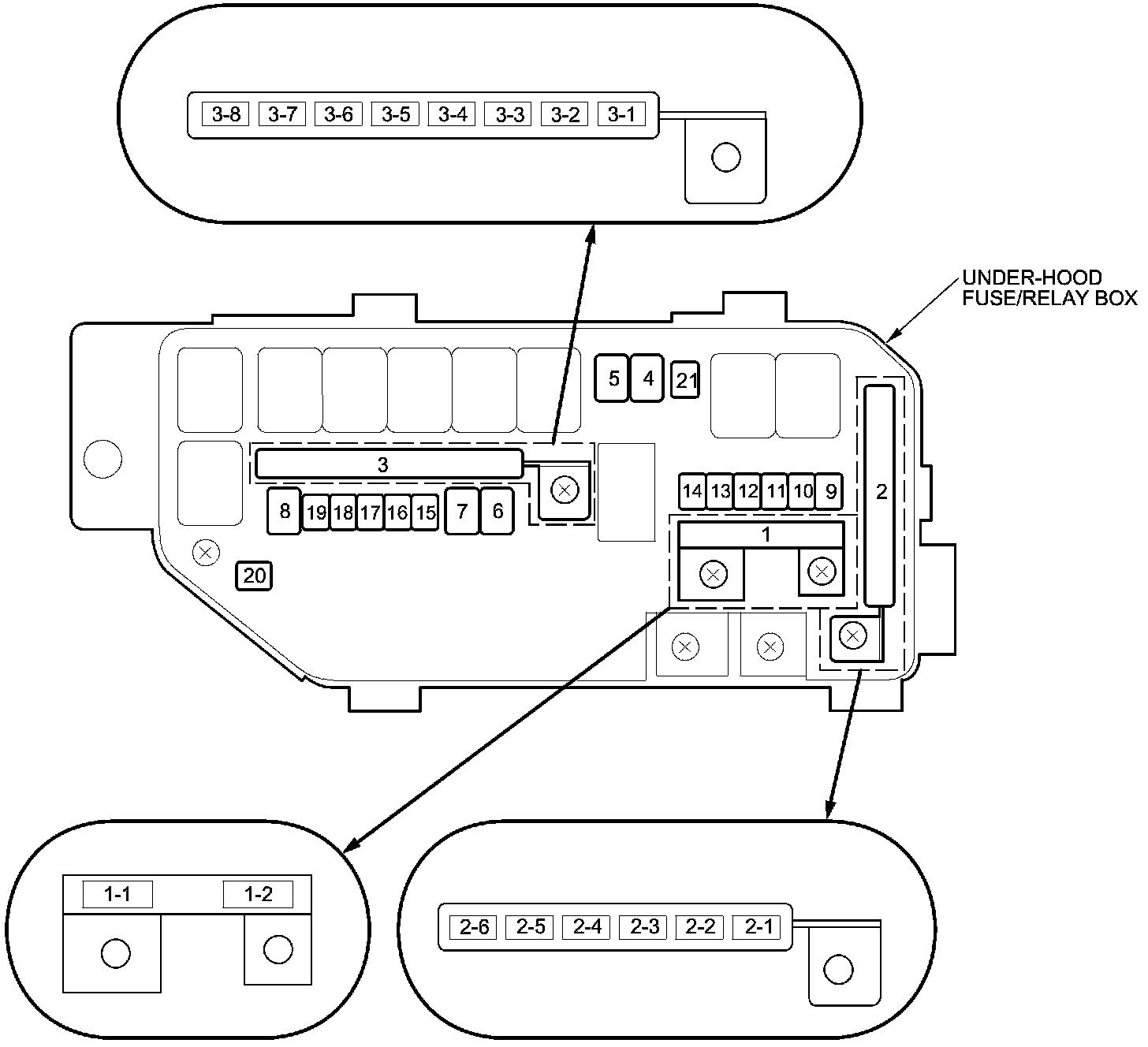

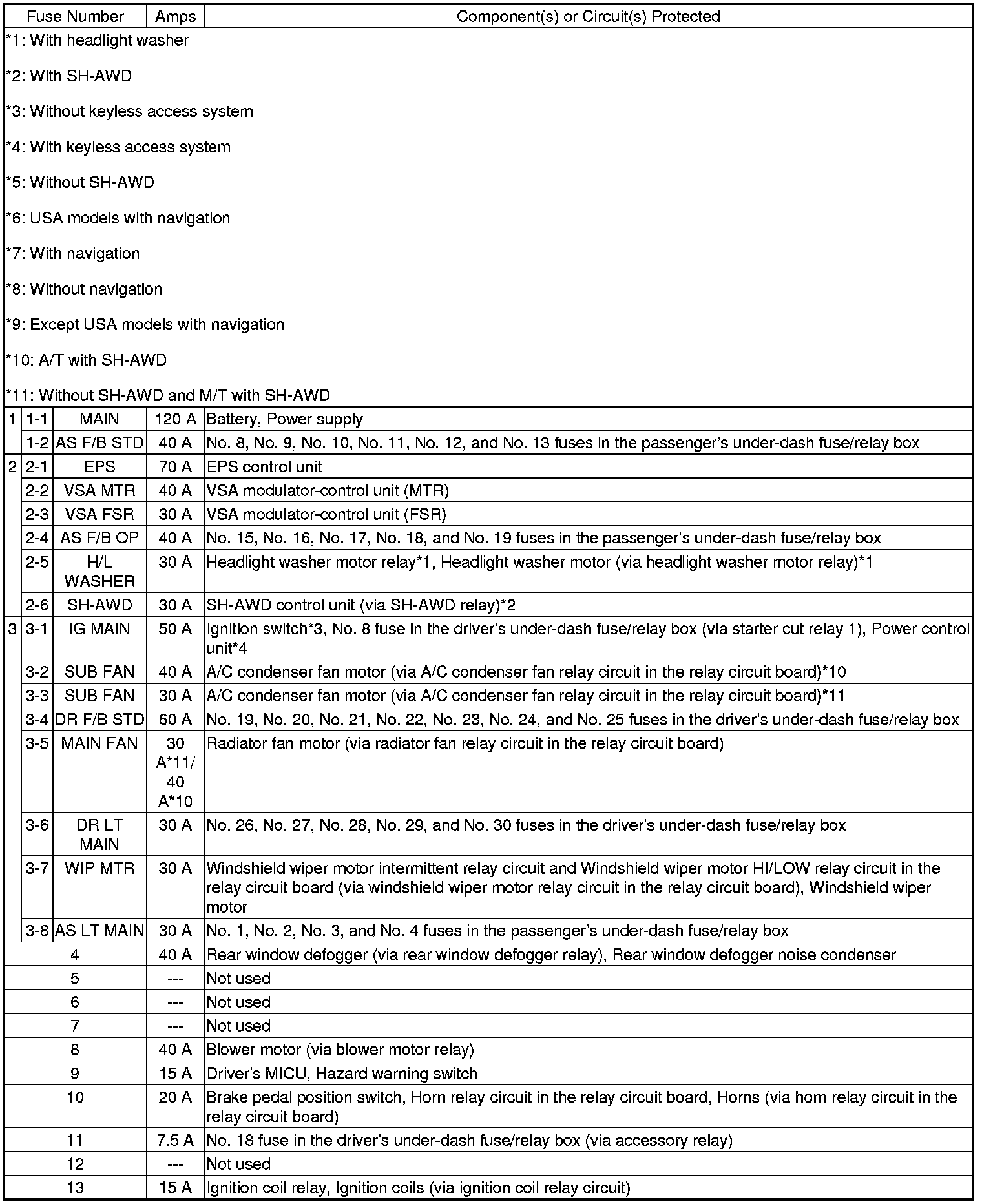

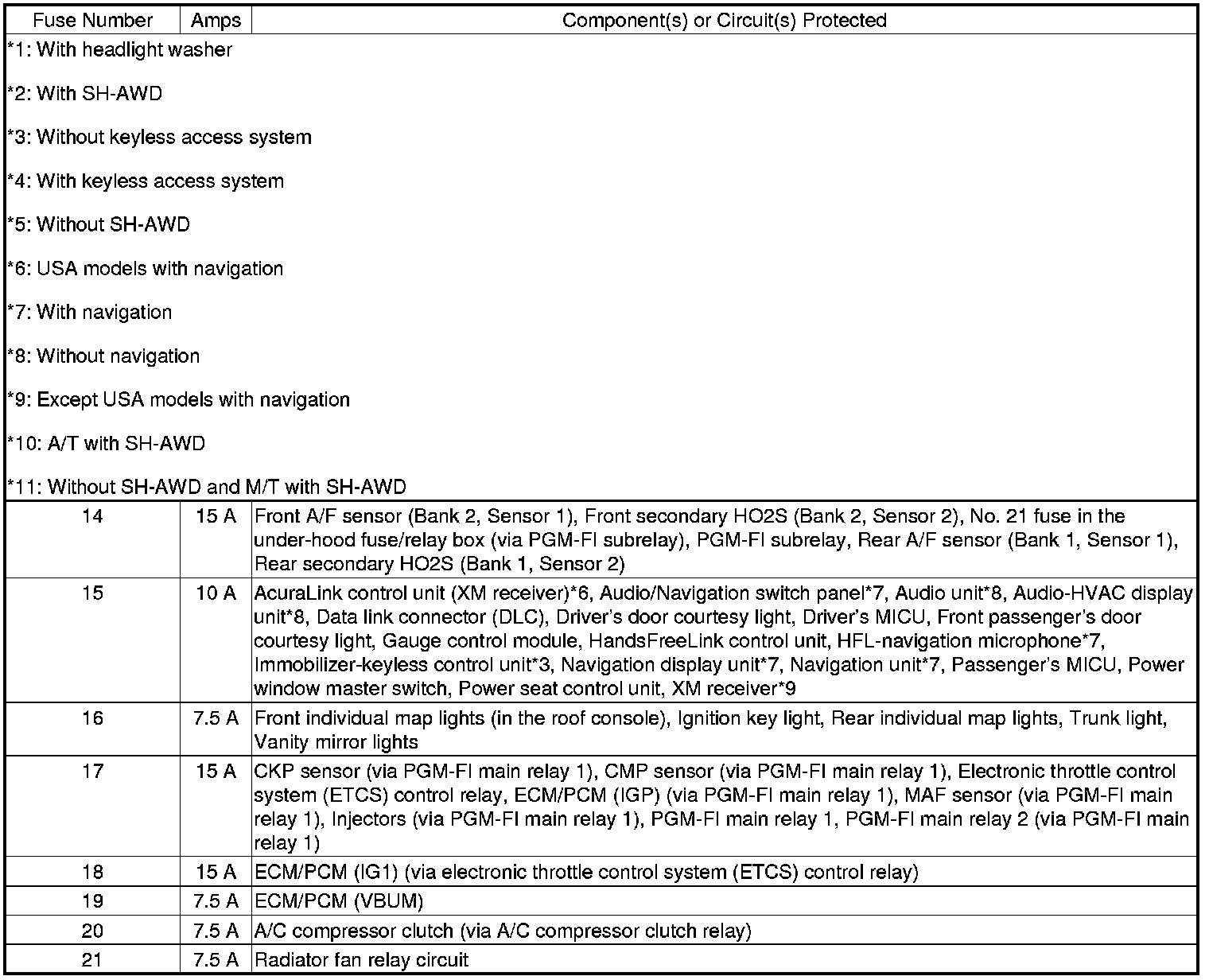

Under-Hood Fuse/Relay Box

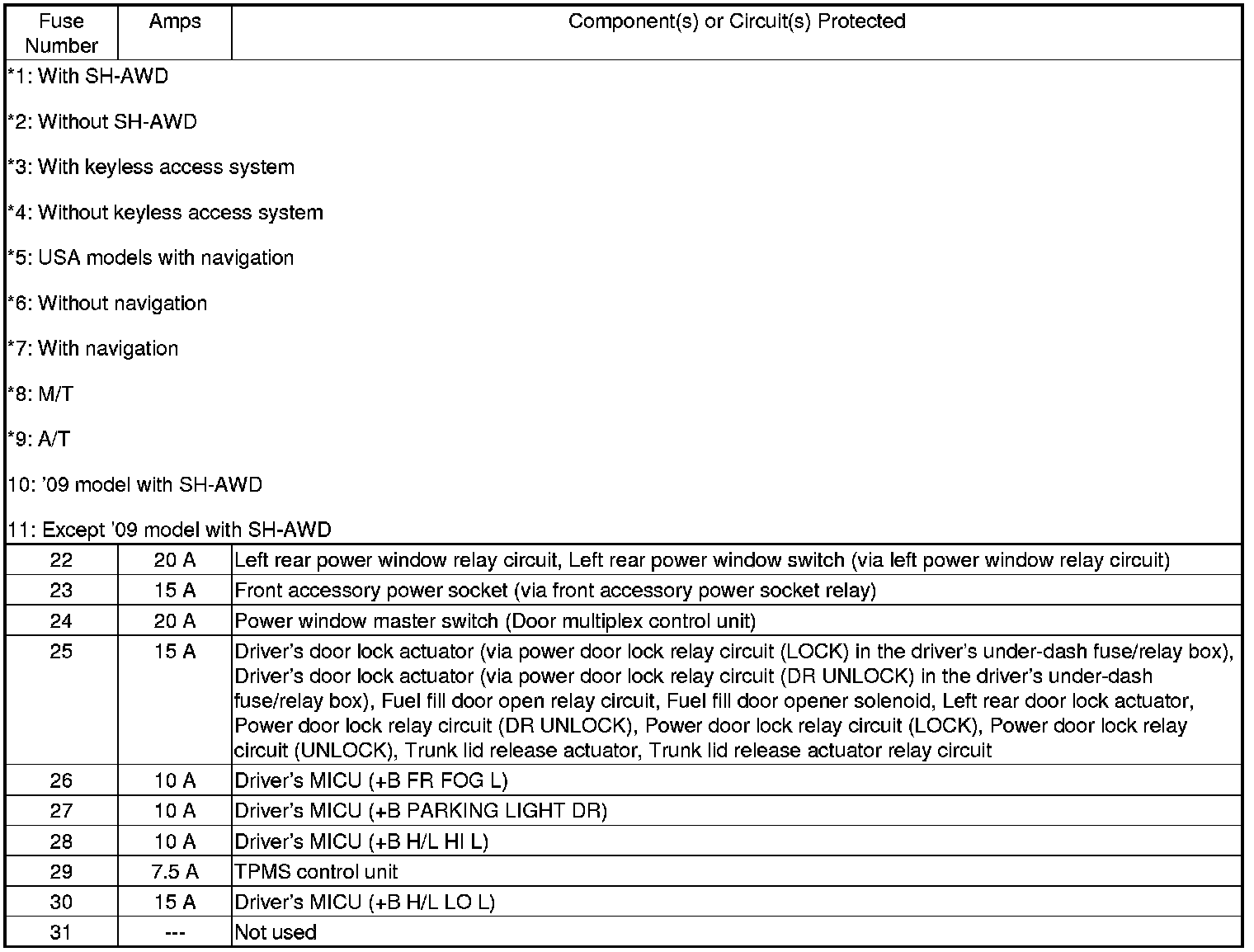

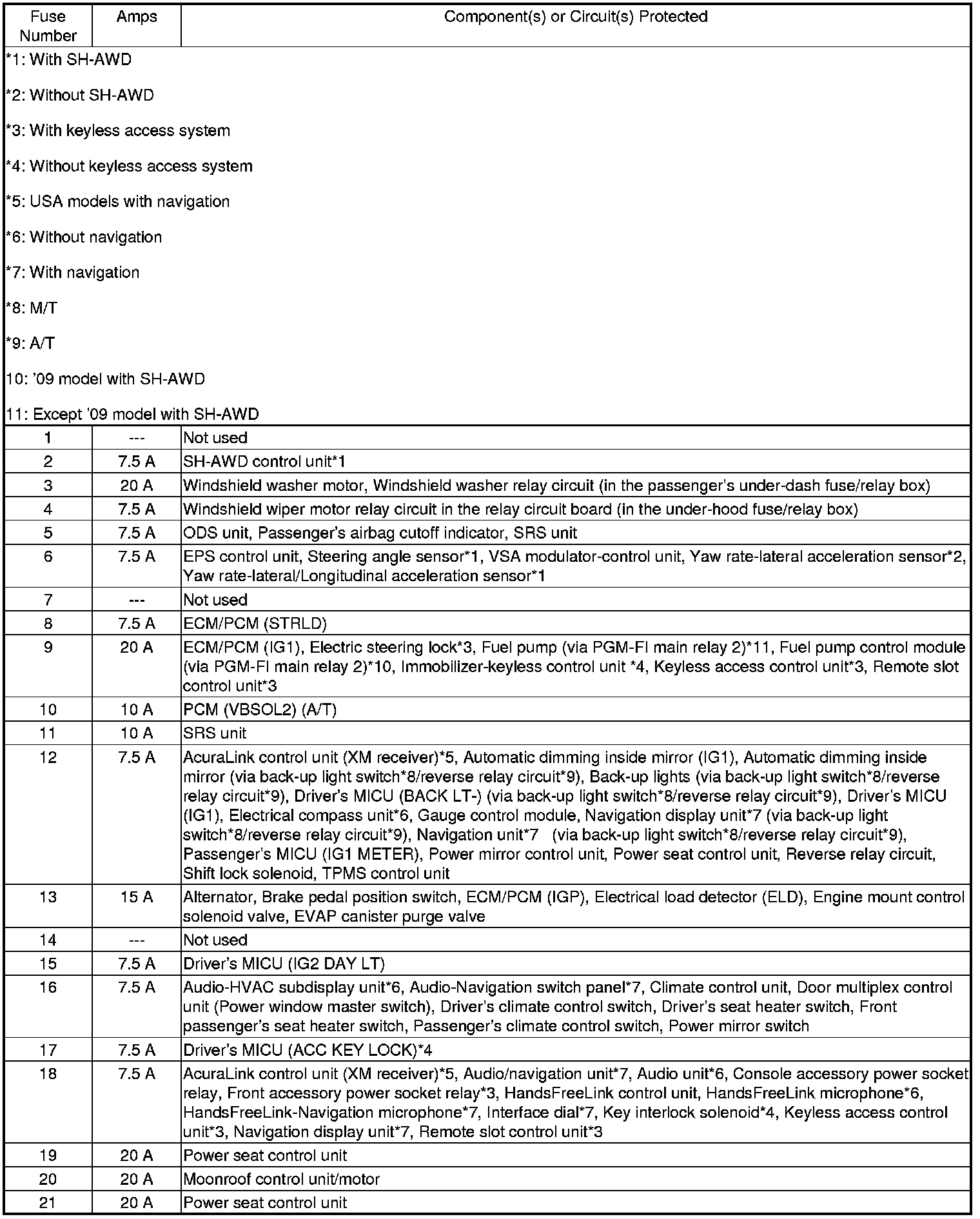

Driver's Under-Dash Fuse/Relay Box

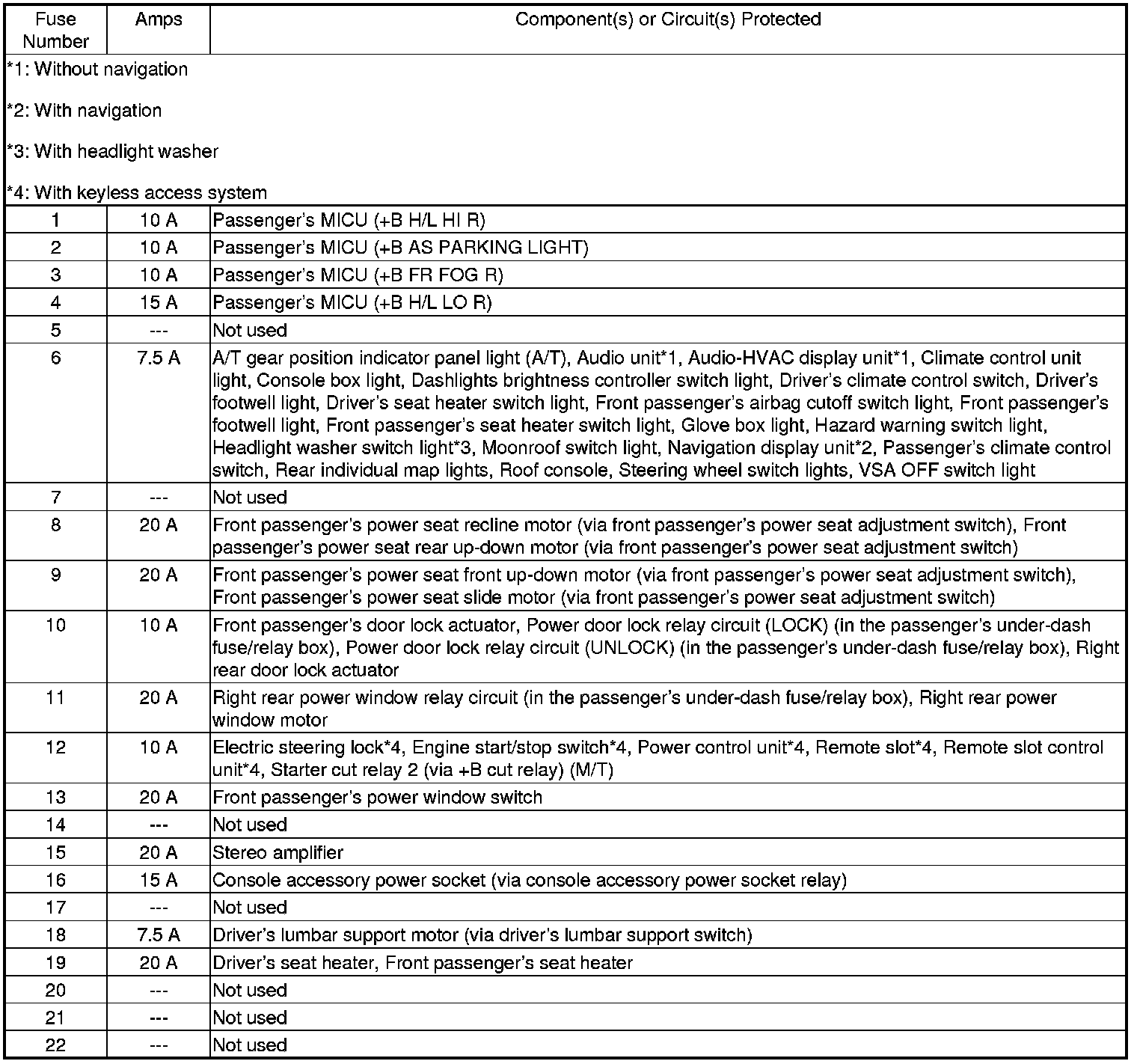

Passenger's Under-Dash Fuse/Relay Box










Auxiliary Under-Dash Fuse Holder
