Tightening Torques

Cylinder head bolts

Measure the diameter of each cylinder head bolt at point A and point B.





If either diameter is less than 11.3 mm (0.44 in), replace the cylinder head bolt.

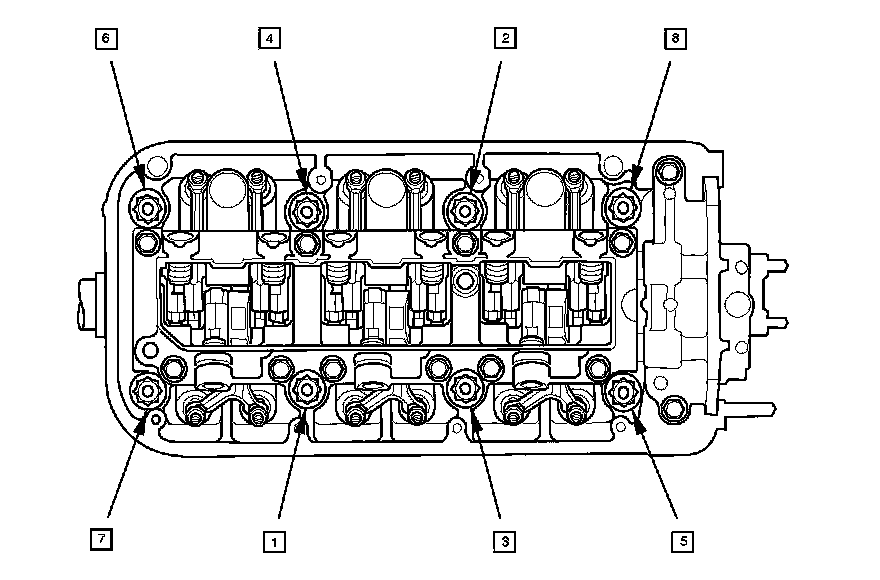

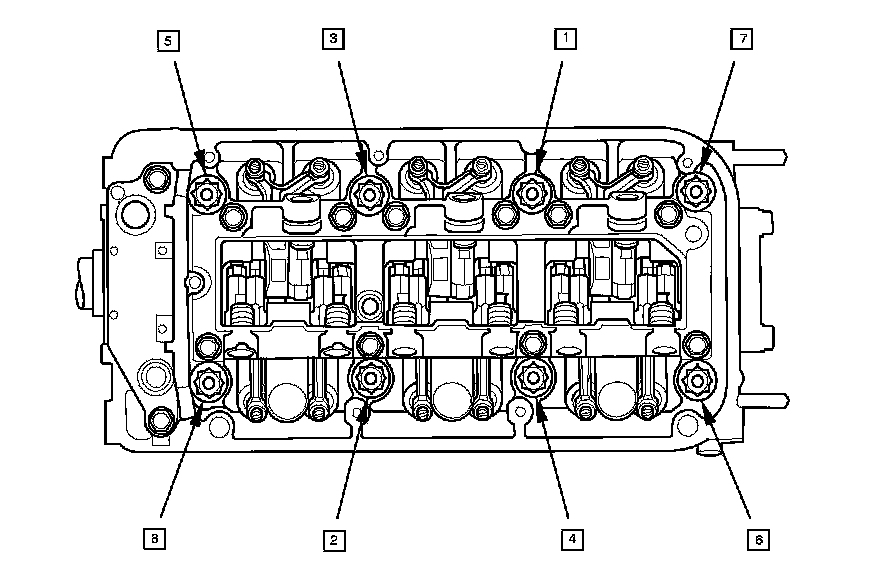

Step 1 29 Nm (3.0 kg-m, 22 lb-ft)
Step 2 90 °
Step 3 90 °
If you are using a new cylinder head bolt, tighten the bolt an extra 90 °
