Intake Manifold

Intake Components

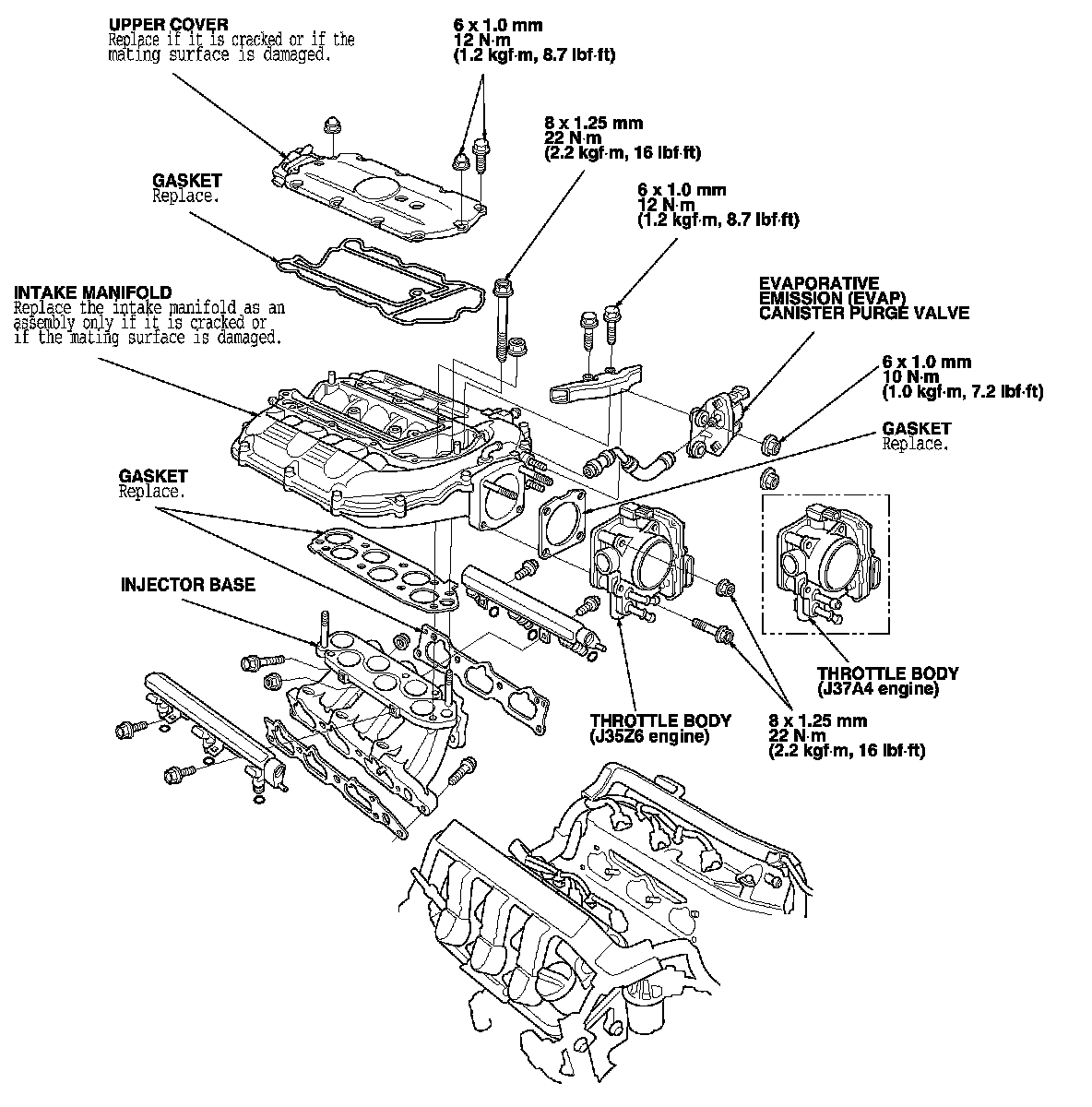

Exploded View





Injector Base

Torque 22 Nm (2.2 kgf-m, 16 ft lbs)

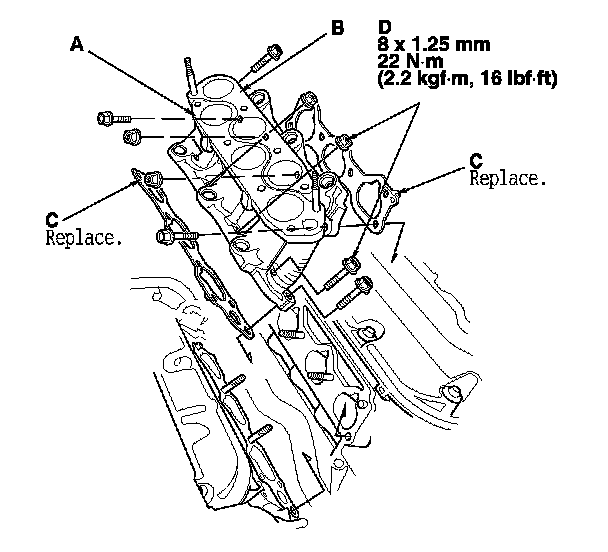

Tighten mounting bolts/nuts (D) in a crisscross pattern in three steps, beginning with the inner nuts.

Intake manifold

Torque 22 Nm (2.2 kgf-m, 16 ft lbs)

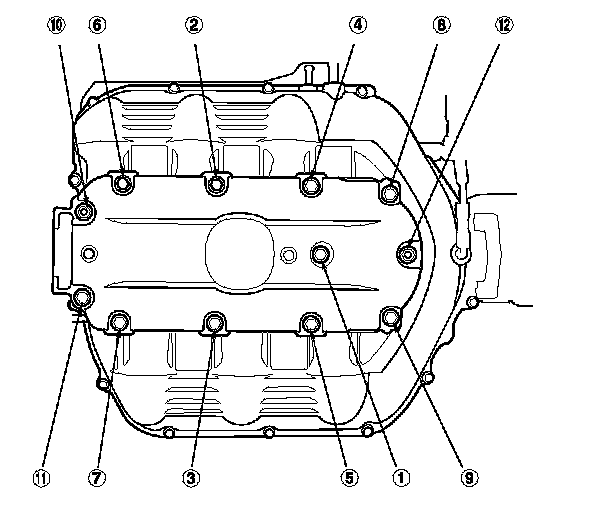

Tighten the mounting bolts and nuts sequentially in three steps

Upper Cover

Torque 12 Nm (1.2 kgf-m, 8.7 ft lbs)

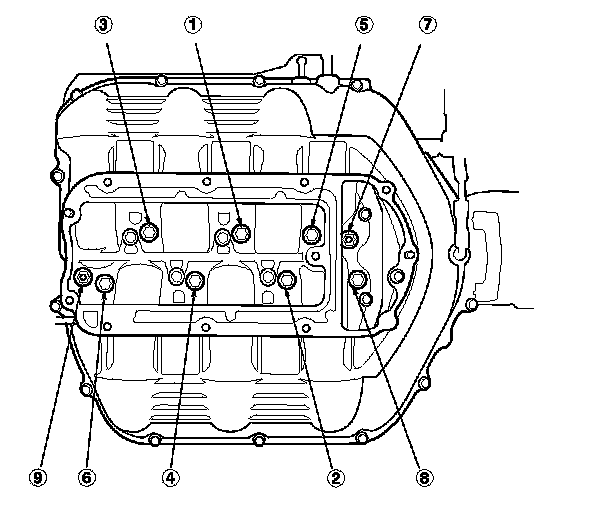

Tighten the mounting bolts and nuts sequentially in three steps

Throttle Body

Torque 22 Nm (2.2 kgf-m, 16 ft lbs)
