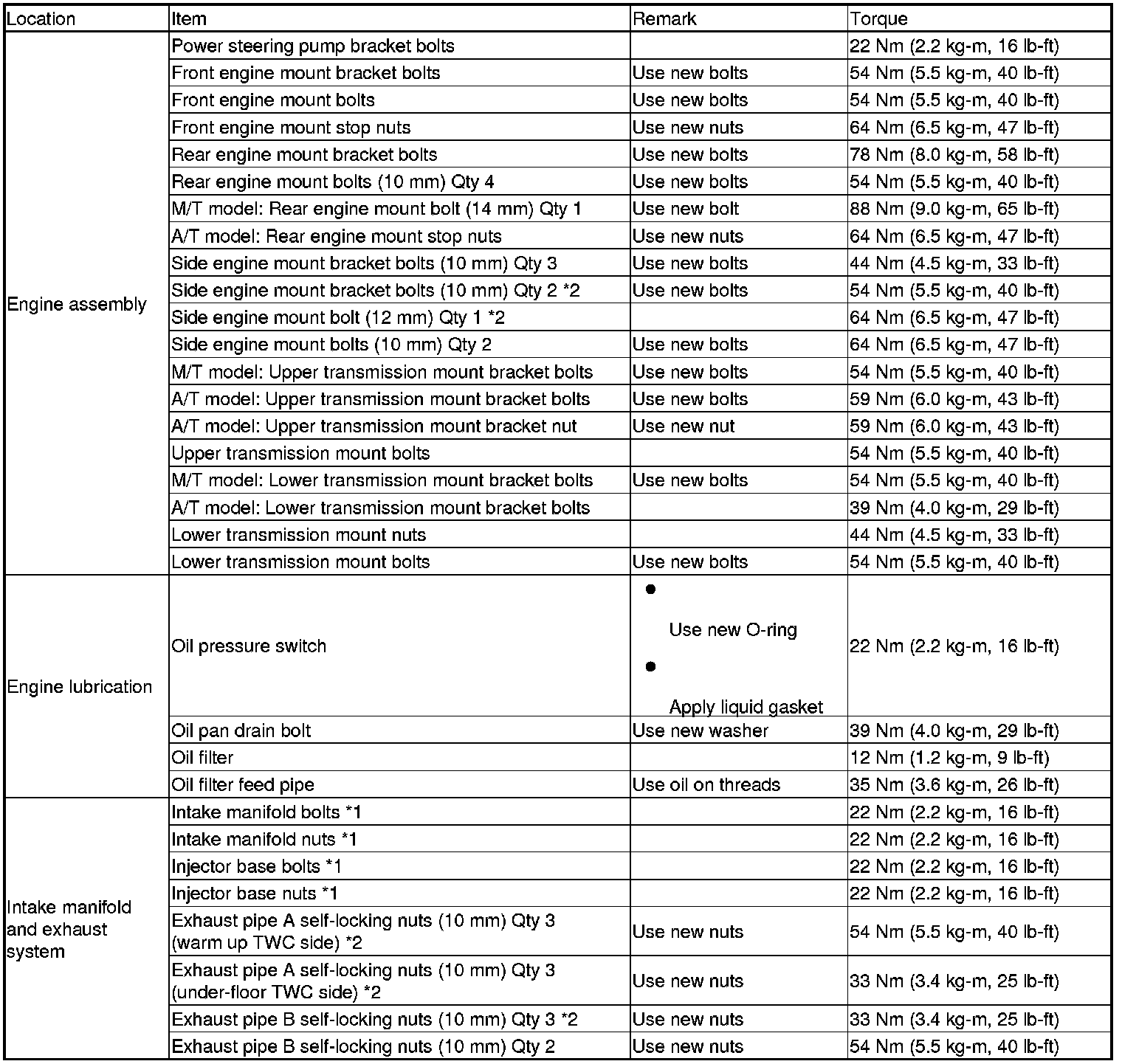

Torque Specifications

Torque Specifications

Engine Mechanical






NOTE:
Refer to the data for the precautions and complete procedures.
Refer to the data for the bolts/nuts not indicated here.
*1: Parts to be tightened in a particular order.
*2: Follow the procedures closely for torque, sequence, and special steps.
