With Keyless Access System

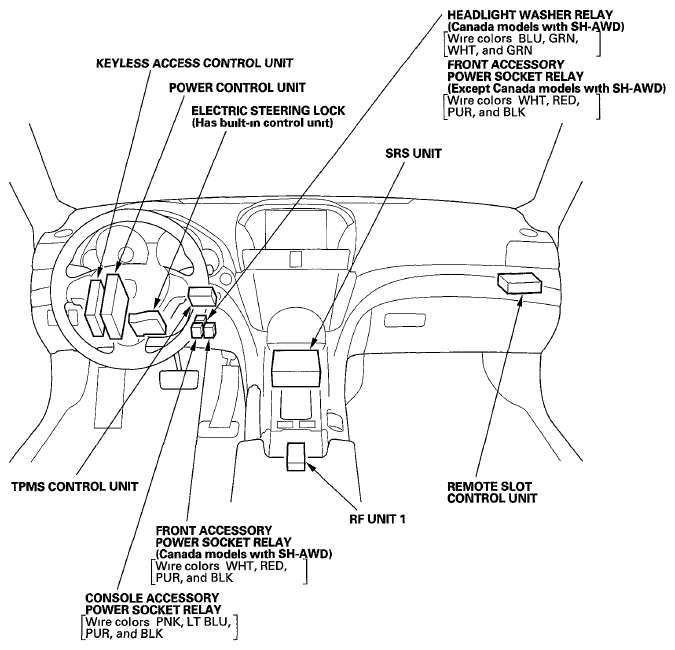

Fig 1: Identifying Relay And Control Unit Component Locations - Dashboard (With Keyless Access System)
G05988774Courtesy of AMERICAN HONDA MOTOR CO., INC.
