With Navigation System

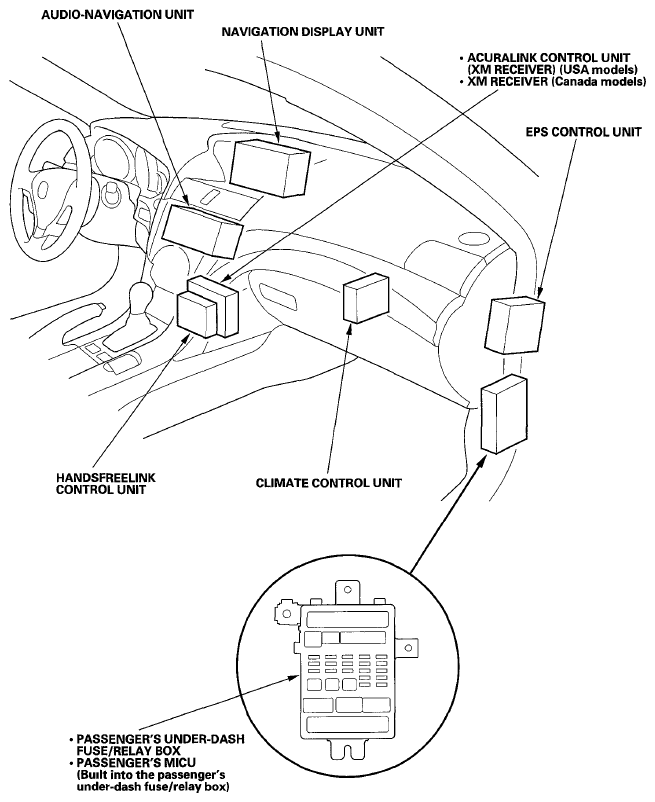

Fig 1: Identifying Relay And Control Unit Component Locations - Dashboard (With Navigation System)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
