Driver's Seat

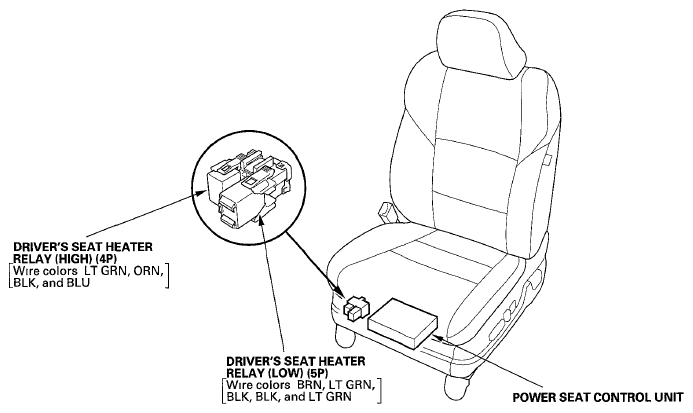

Fig 1: Identifying Relay And Control Unit Component Locations - Seat (Driver's Seat)
G05988781Courtesy of AMERICAN HONDA MOTOR CO., INC.
