View 331 - Audio Remote-HFL Switch Connector View (Without Navigation)
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

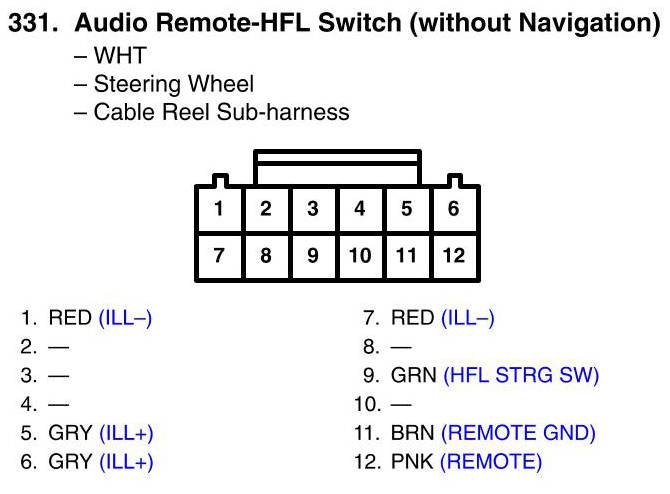

View 331 - Audio Remote-HFL Switch Connector View (Without Navigation)
