Fuel Tank Pressure Sensor: Service and Repair

FTP Sensor Replacement

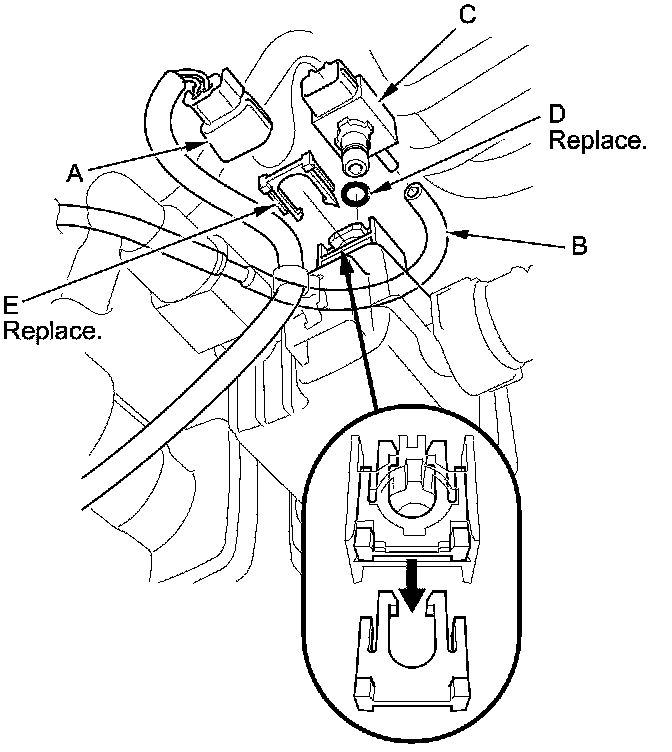

1. Raise the vehicle on a lift.

2. Remove the EVAP canister cover.

3. Disconnect the FTP sensor 3P connector (A).





4. Disconnect the hose (B), and remove the FTP sensor (C).

5. Install the parts in the reverse order of removal with a new O-ring (D) and a new retainer (E).
