Cruise Control Module: Service and Repair

Adaptive Cruise Control (ACC) Unit Removal/Installation

1. Remove the glove box Service and Repair.

2. Remove the stereo amplifier Service and Repair.

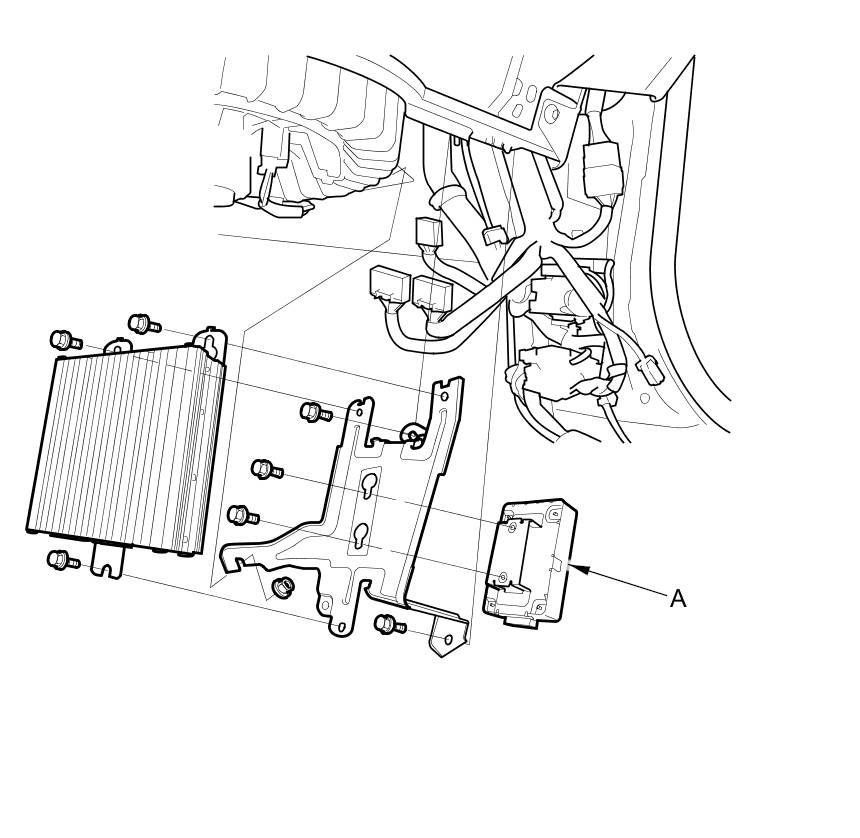

3. Remove the bolts from the bracket that hold the ACC unit (A).





4. Disconnect the connector from the ACC unit.

5. Remove the ACC unit from the bracket.

6. Install the unit in the reverse order of removal.

NOTE: If a new ACC unit is installed, do these operations:

- Do the ACC unit update procedure Testing and Inspection.
- Do the CMBS initial check (DTC100) 100.
