Climate Control Unit Removal/Installation

Climate Control Unit Removal/Installation

1. Remove the audio unit Audio Unit Removal/Installation or audio-navigation unit Audio-Navigation Unit Removal/Installation.

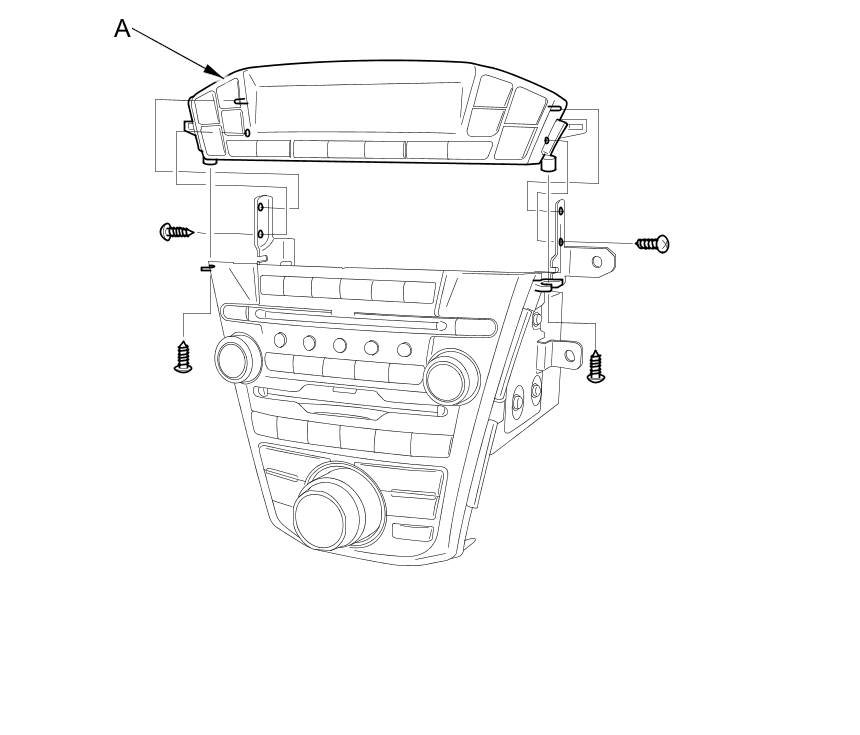

2. Remove the self-tapping screws, and remove the climate control unit (A) from the audio-navigation unit.





3. Install the control unit in the reverse order of removal. After installation, operate the climate control unit in various functions to confirm that it works properly.

4. Run the self-diagnostic function to confirm that there are no problems in the system.
