Instrument Panel Control Module: Service and Repair

Gauge Control Module Replacement

NOTE: Before replacing the gauge control module, do the "Rewriting the ODO Data and Transferring the Maintenance Minder Data to a New Gauge Control Module" Programming and Relearning.

1. Remove the parts shown:

- Driver's outer dashboard trim Driver's Outer Dashboard Trim Removal/Installation.
- Driver's inner dashboard trim Driver's Inner Dashboard Trim Removal/Installation.
- Instrument fascia Instrument Fascia Removal/Installation.

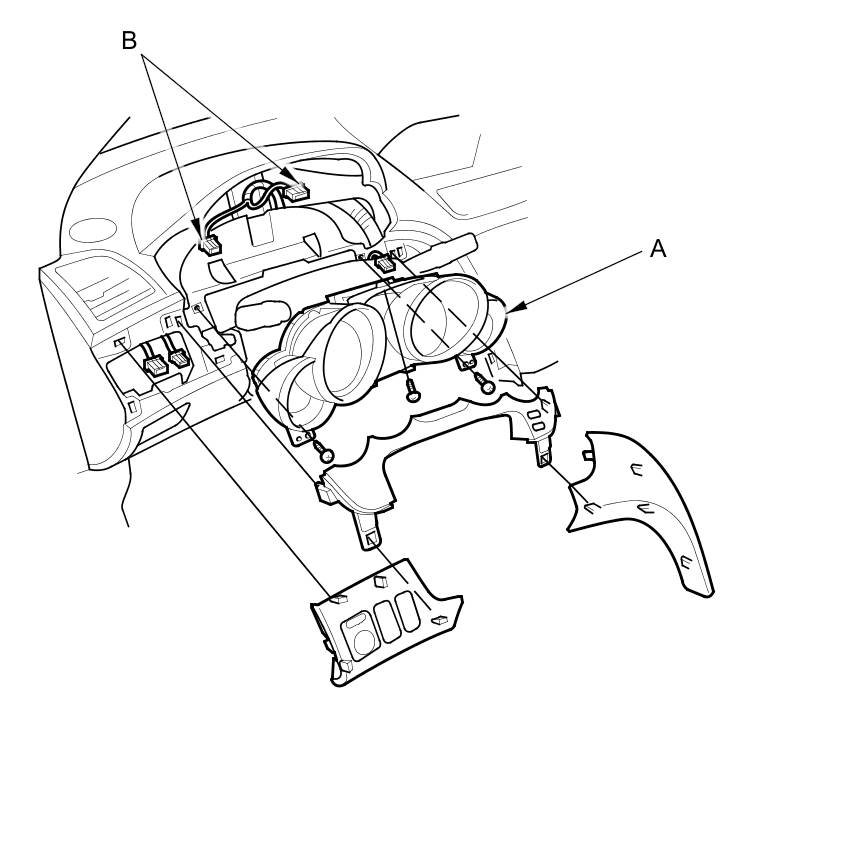

2. Remove the screws from the gauge control module (A).





3. Disconnect the connectors (B), and remove the gauge control module.

4. Install the gauge control module in the reverse order of removal.
