EGR Valve Replacement

  1. Remove the engine cover (see step 6 on page 5-2).
  2. Remove the main under-hood fuse box.
  3. Disconnect the EGR valve 5P connector (A).

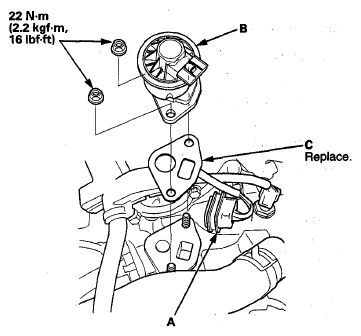

    Fig 1: EGR Valve 5P Connector And Gasket With Torque Specifications
    G08052638Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the EGR valve (B).
  5. Install the parts in the reverse order of removal with a new gasket (C).
