Rocker Arm Oil Control Solenoid Replacement

  1. Disconnect the rocker arm oil control solenoid connector (A).

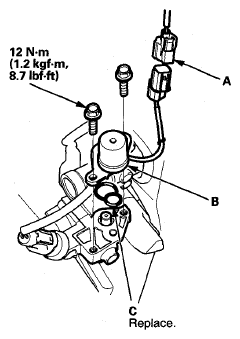

    Fig 1: Rocker Arm Oil Control Solenoid With Torque Specifications
    G08052497Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the rocker arm oil control solenoid (B).
  3. Install the parts in the reverse order of removal with a new O-ring (C).
