Ambient Temperature Sensor / Switch HVAC: Service and Repair

Outside Air Temperature Sensor Replacement

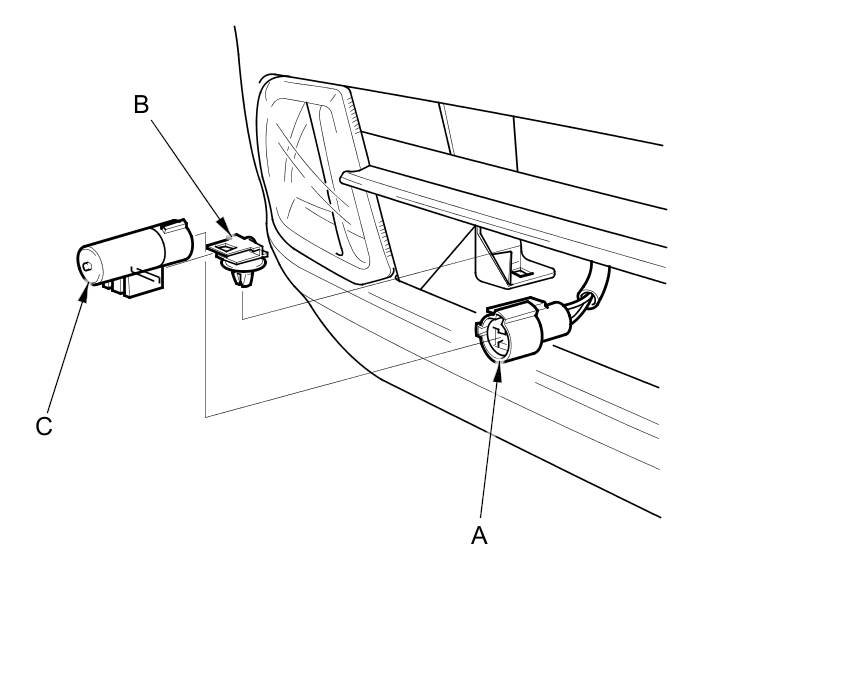

1. Disconnect the 2P connector (A) from the outside air temperature sensor.





2. Remove the sensor clip (B), then remove the outside air temperature sensor (C).

3. Install the sensor in the reverse order of removal.
