Fuse to Components Index




Fuse to Components Index

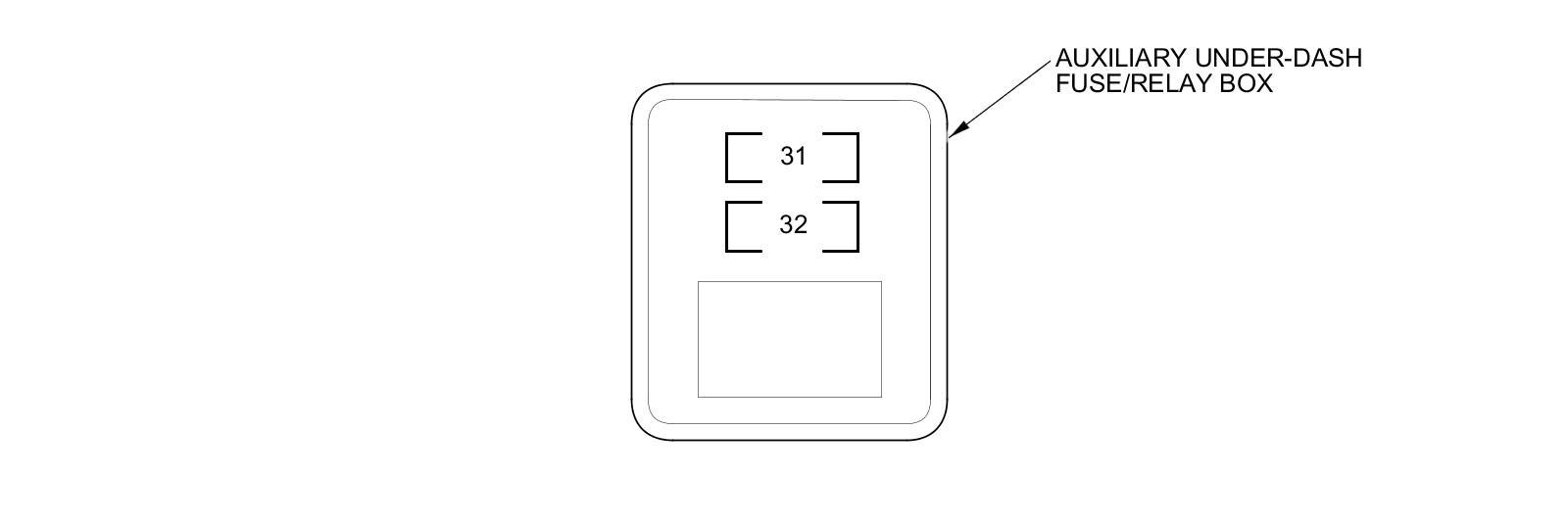

Auxiliary Under-Dash Fuse/Relay Box

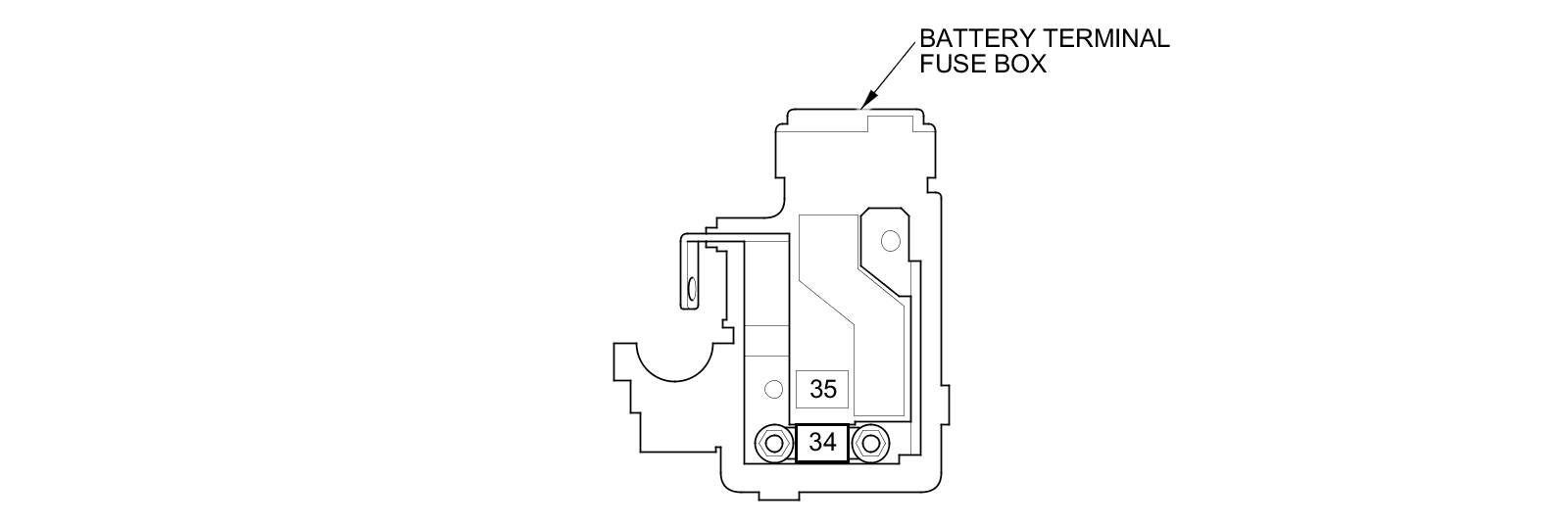

Battery Terminal Fuse Box

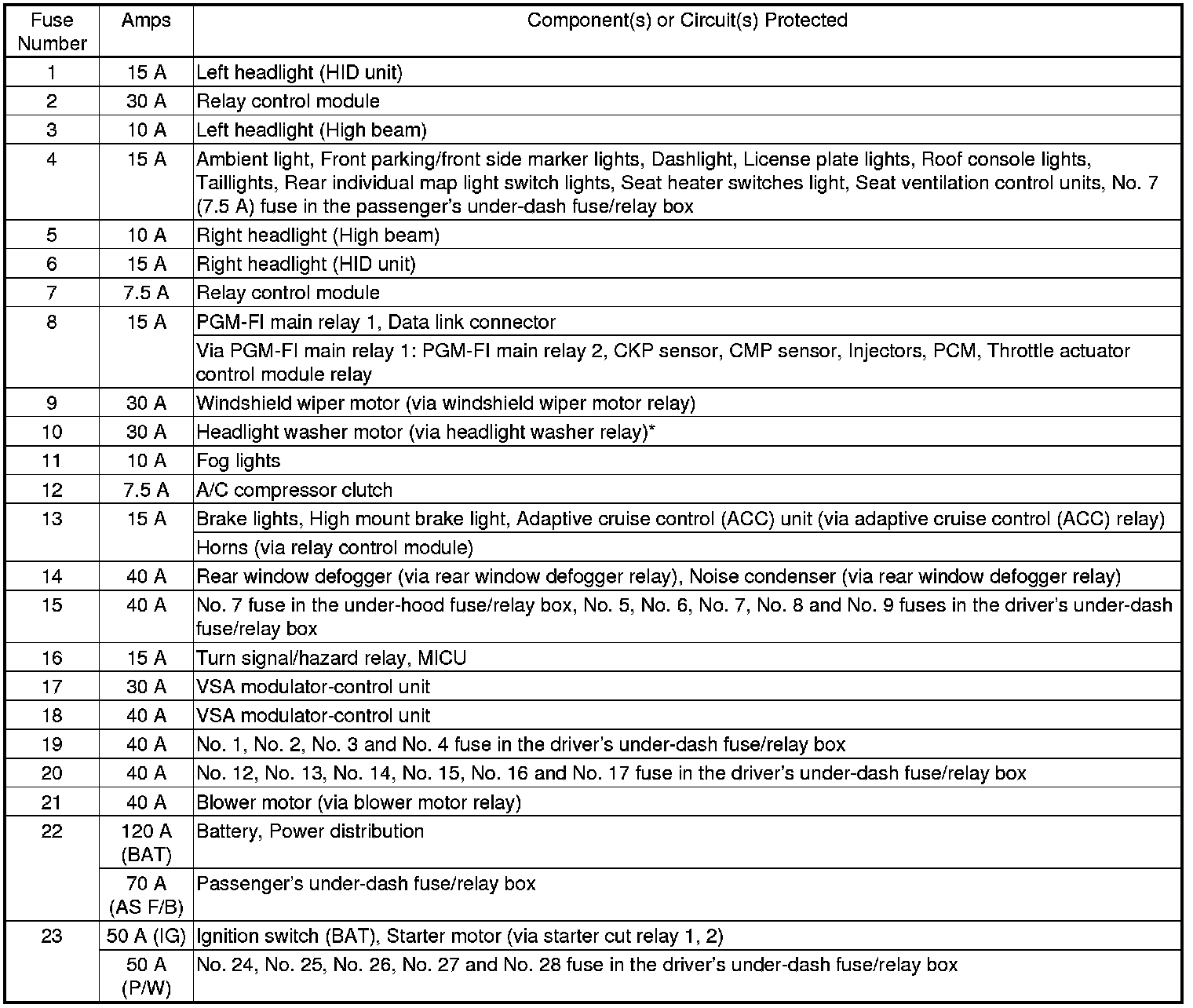

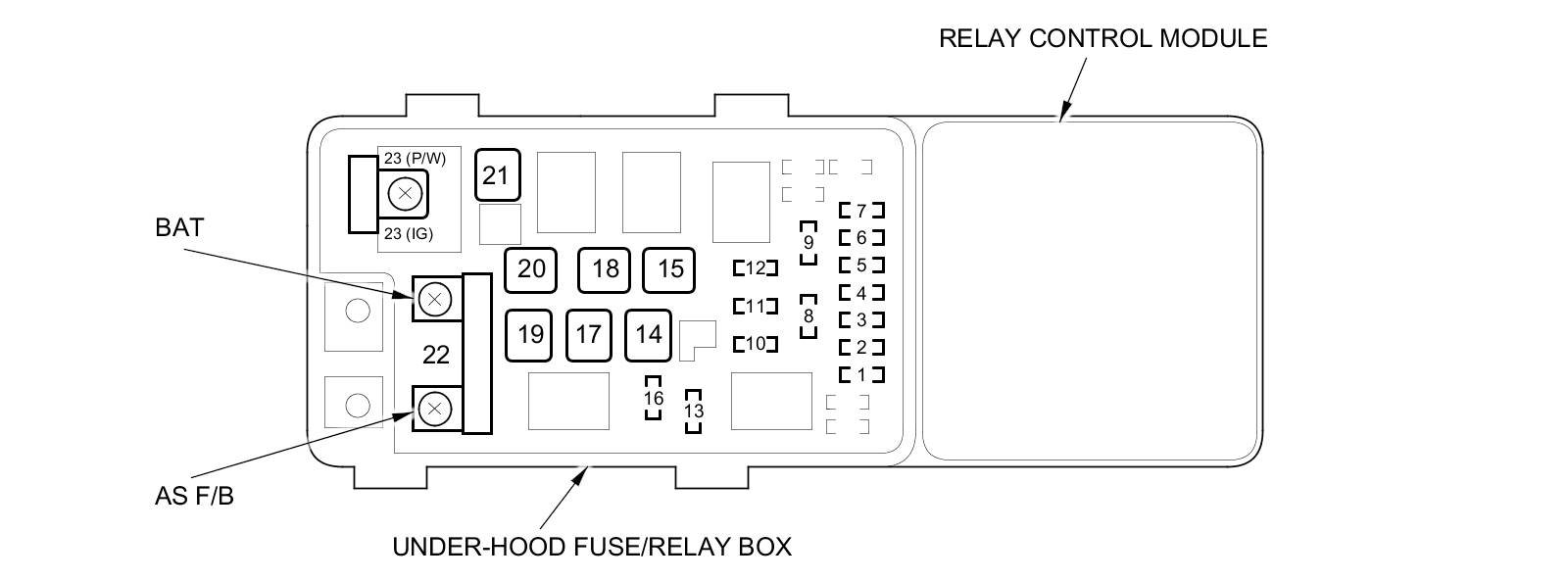

Under-Hood Fuse/Relay Box

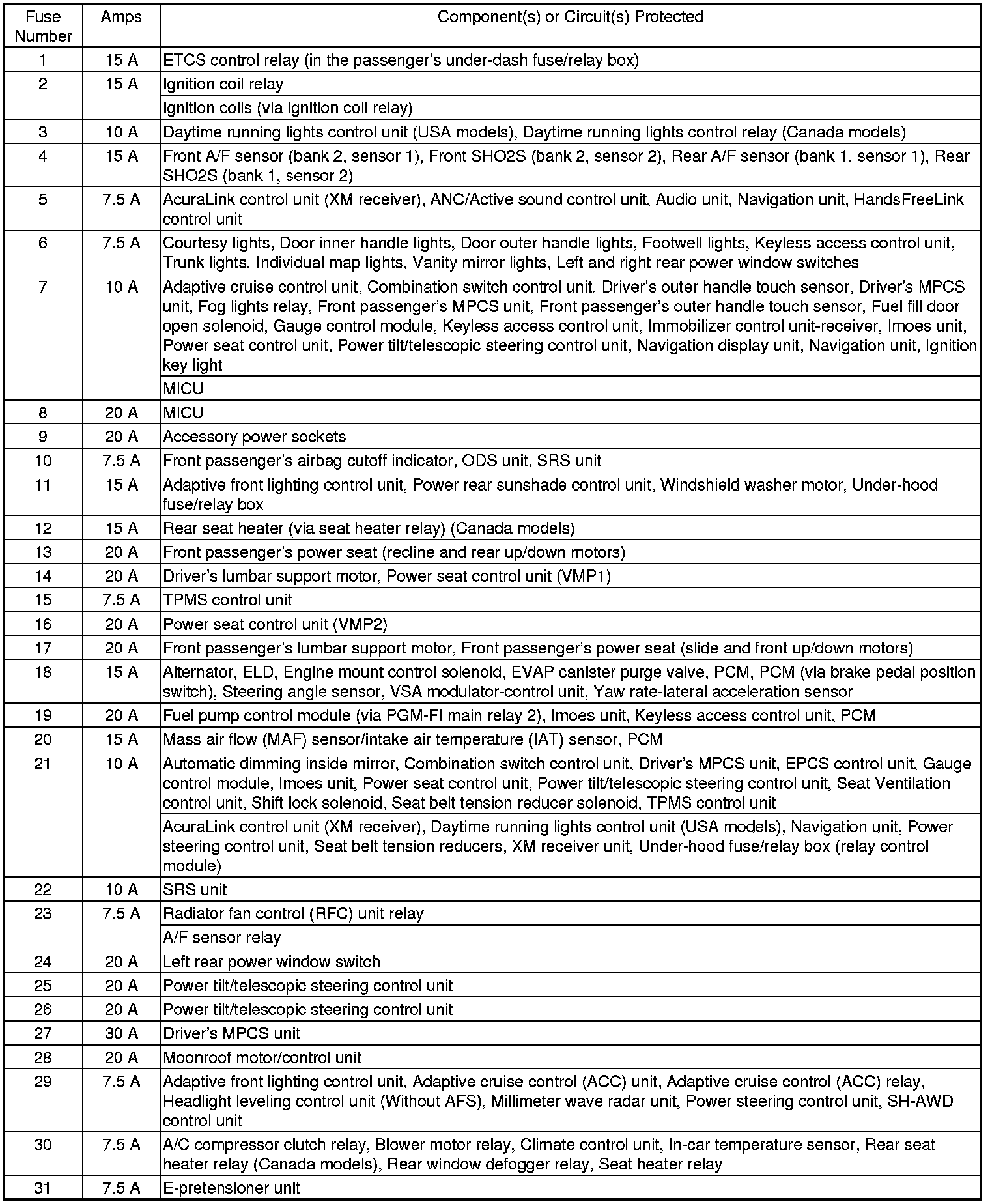

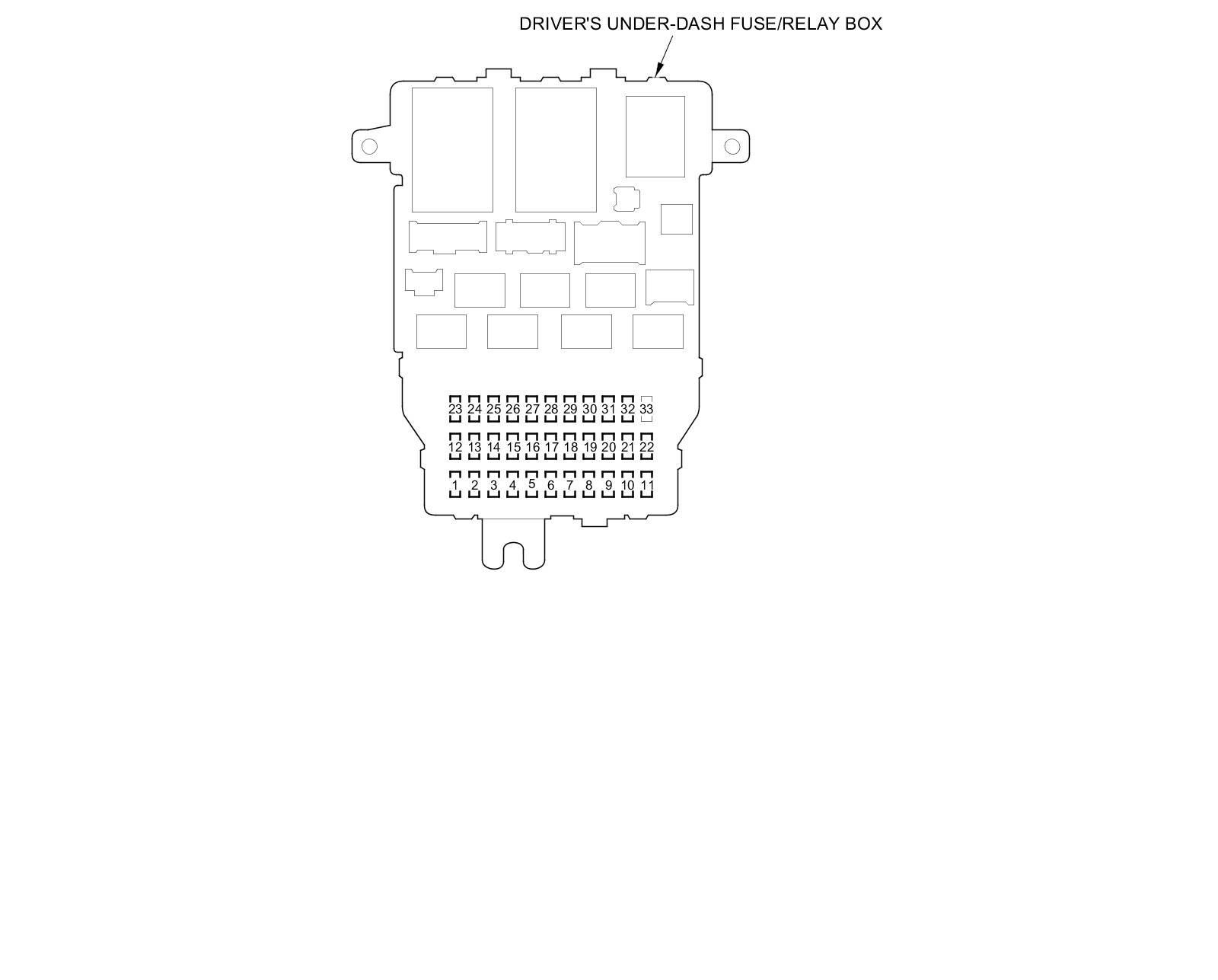

Driver's Under-Dash Fuse/Relay Box

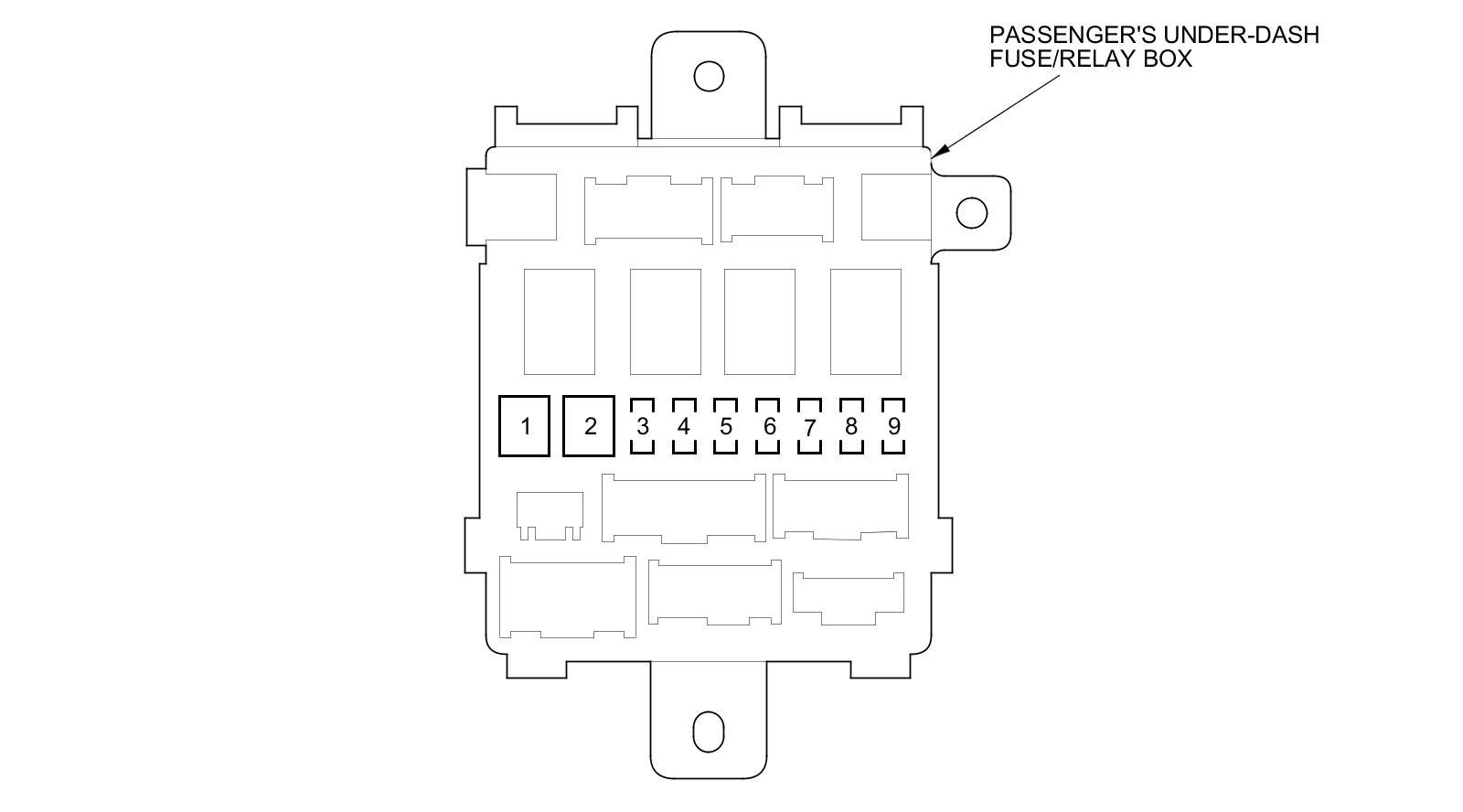

Passenger's Under-Dash Fuse/Relay Box
