Radiator Cooling Fan Control Module: Service and Repair

RFC Unit Replacement

1. Remove the upper grille cover Upper Grille Cover Replacement.

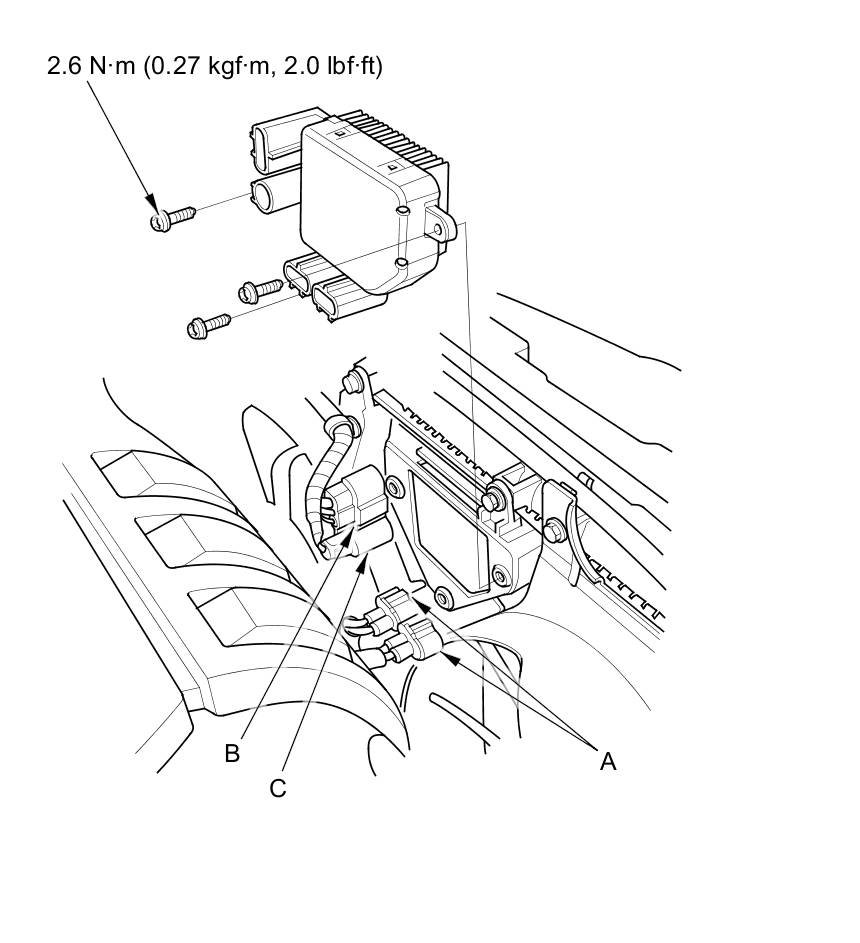

2. Disconnect the fan motor connectors (A), the 3P connector (B) and the 1P connector (C) from the RFC unit.





3. Remove the RFC unit from the radiator fan shroud.

NOTE: When removing the RFC unit mounting screws take care not to damage the screw heads.

4. Install the RFC unit in the reverse order of removal.
