Removal and Replacement

Rear Window Sunshade Removal/Installation

NOTE:

- Put on gloves to protect your hands.
- Take care not to hit the rear window when removing or loosing the bolts.
- Take care not to scratch the trim or the panels.

1. Remove the rear shelf Service and Repair.

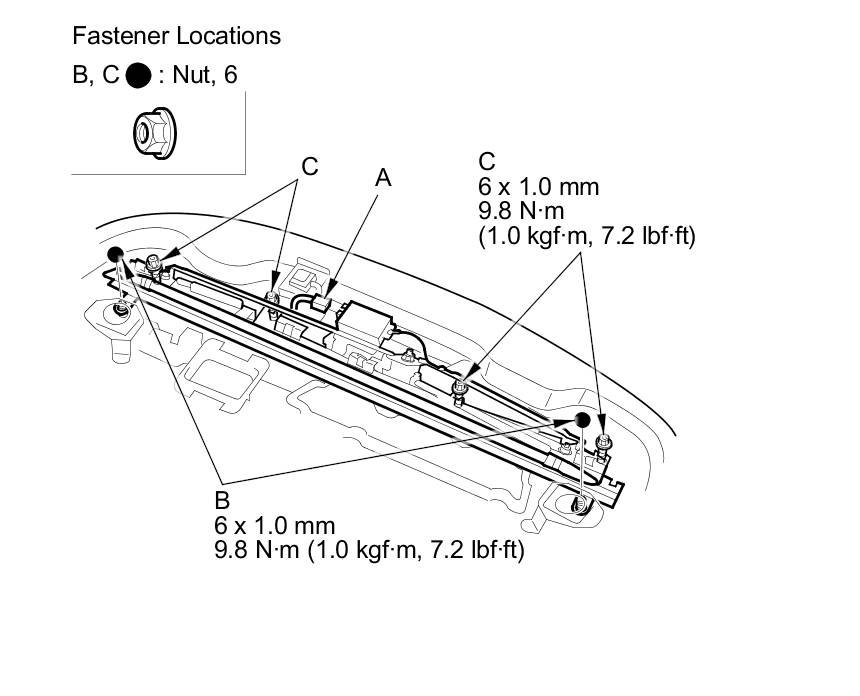

2. Disconnect the power rear sunshade control unit connector (A). Remove the two nuts (B), and loosen the four nuts (C) securing the rear window sunshade.

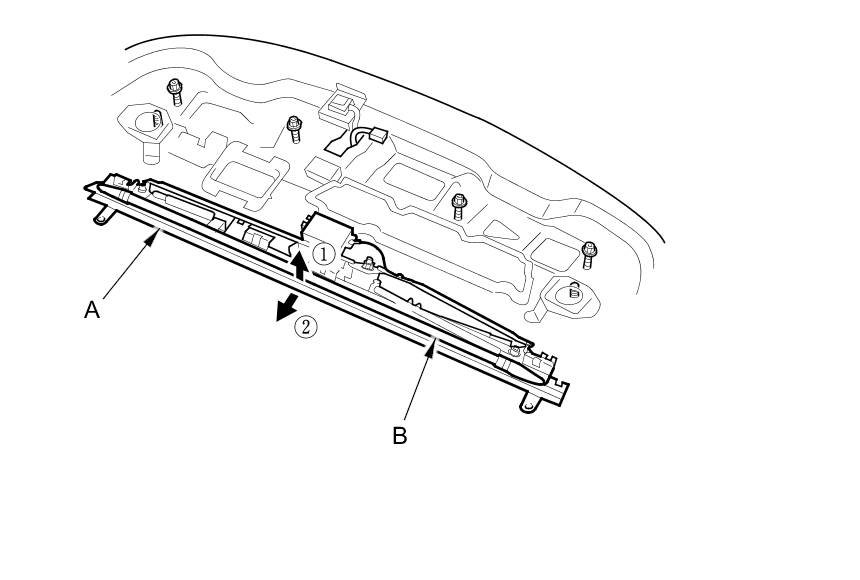

3. While lifting at the front edge of the rear window sunshade (A), slide it forward, then remove it. Do not catch the screen portion (B) while removing the sunshade.





4. Install the sunshade in the reverse order of removal, and note these items:

- Be sure there is no gap between the bracket and the rear shelf, then tighten the mounting nuts securely.
- Make sure the control unit connector is plugged in properly.
- Make sure the power rear sunshade operates properly.
