Navigation Unit Inputs and Outputs

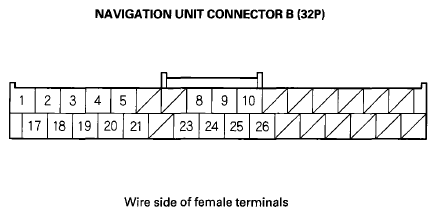

Fig 1: Identifying Navigation Unit Inputs And Outputs

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 1: Identifying Navigation Unit Inputs And Outputs

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 1: Identifying Navigation Unit Inputs And Outputs

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 1: Identifying Navigation Unit Inputs And Outputs

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 1: Identifying Navigation Unit Inputs And Outputs

Courtesy of AMERICAN HONDA MOTOR CO., INC.

TERMINAL NUMBER AND WIRE COLOR DESCRIPTION

Terminal Number

Wire Color

Terminal Name

Description

Voltage (about)

Symptom

WHT

RC VCC

Power source for rearview camera

If open: No rearview camera image in reverse.
If short to ground: No rearview camera image in reverse.

BLK

RC GND

Ground for rearview camera

0 V

If open: No rearview camera image in reverse.

RED

CAMERA GND

Ground for rearview camera video signal

0 V

If open: No rearview camera image in reverse.

YEL

CAMERA V

Video signal for rearview camera

0.3 V AC

If open: No rearview camera image in reverse. If short to ground: When put into reverse, navigation screen goes black (display backlight still operative).

GRY⁽¹⁾

CAMERA SH

Shield for terminals No. 1, 2, 4, 5, 7

If open: No rearview camera image in reverse. If short to ground: No rearview camera image in reverse.

GRN

CAMERA (ADPT)

Control signal for rearview camera

0-1 V

If open: No rearview camera image in reverse. If short to ground: No rearview camera image in reverse.

⁽¹⁾	The shielded wires have a heat-shrink tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire shown on the circuit diagram.
