Headlight Leveling Control Unit Connector End View (USA: Base; Canada: Base) (View 384)
GRY
Under left side of dash
On engine compartment wire harness (dash branch)

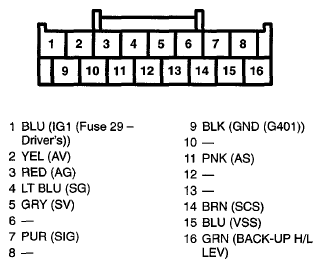

Fig 1: Headlight Leveling Control Unit (USA: Base; Canada: Base) Connector Terminals (View 384)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
