Transmission Gear Selection Switch/Park Pin Switch/A/T Gear Position Indicator Panel Light Connector End View (View 297)
GRY
Under center console
On dashboard wire harness (center branch)

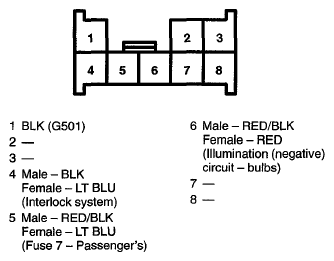

Fig 1: Transmission Gear Selection Switch/Park Pin Switch/A/T Gear Position Indicator Panel Light Connector Terminals (View 297)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
