C771 Connector End View (View 397)

WHT
Under right side of dash
Connects dashboard wire harness (right branch) to front passenger's door sub-harness

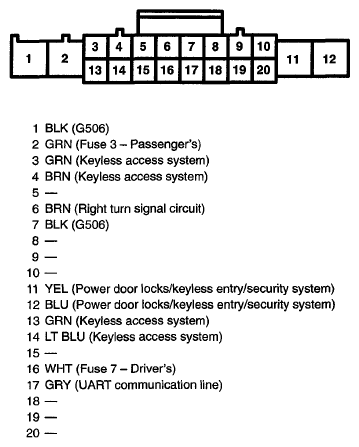

Fig 1: C771 Connector Terminals (View 397)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
