Driver's Power Seat Rear Up-Down Motor/Position Sensor Connector End View (View 225)

BRN/WHT
Under driver's seat
On driver's seat wire harness

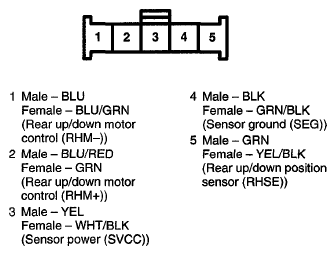

Fig 1: Driver's Power Seat Rear Up-Down Motor/Position Sensor Connector Terminals (View 225)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
