Sound Proofing / Insulation: Service and Repair

Floor Insulators

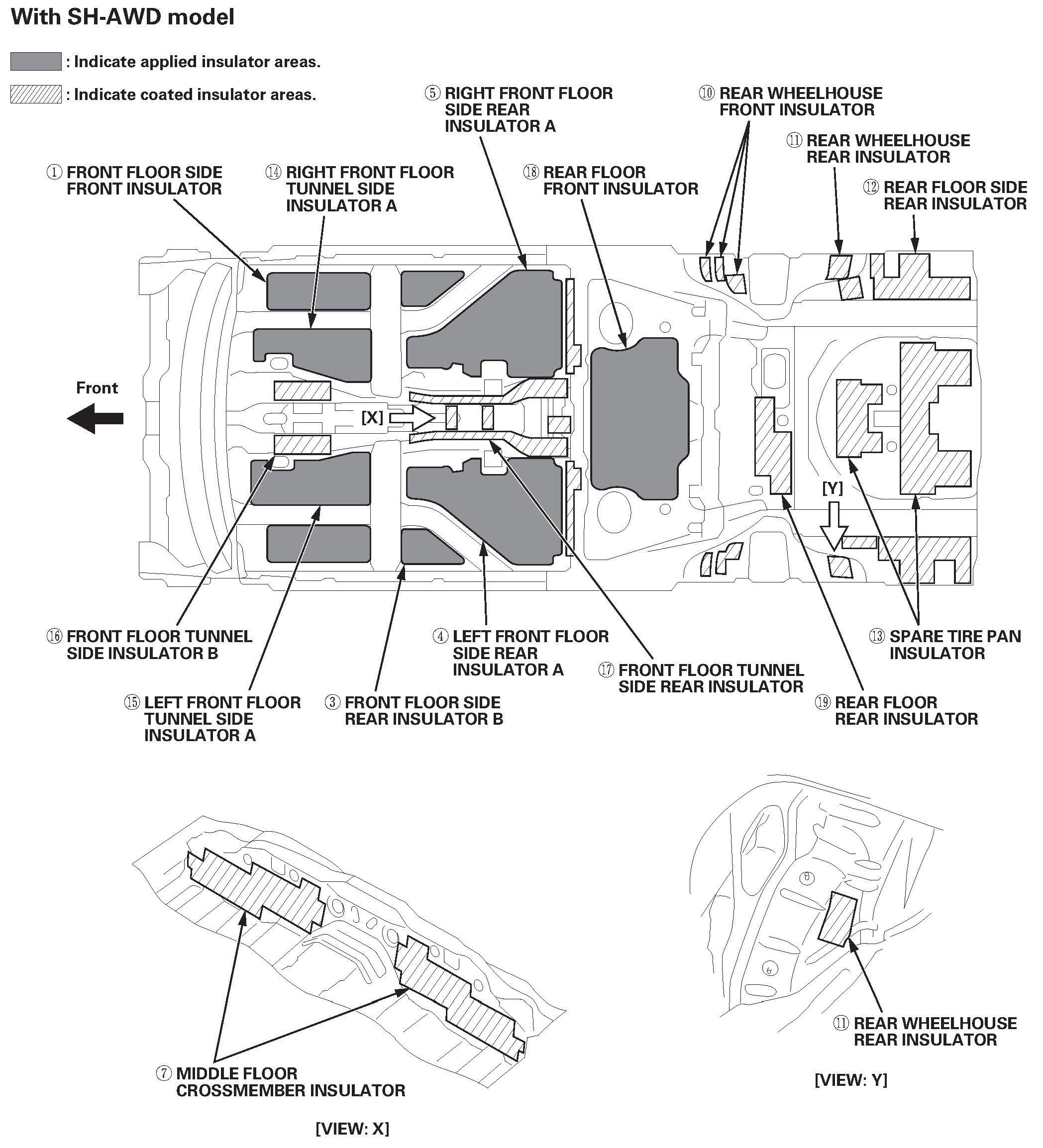

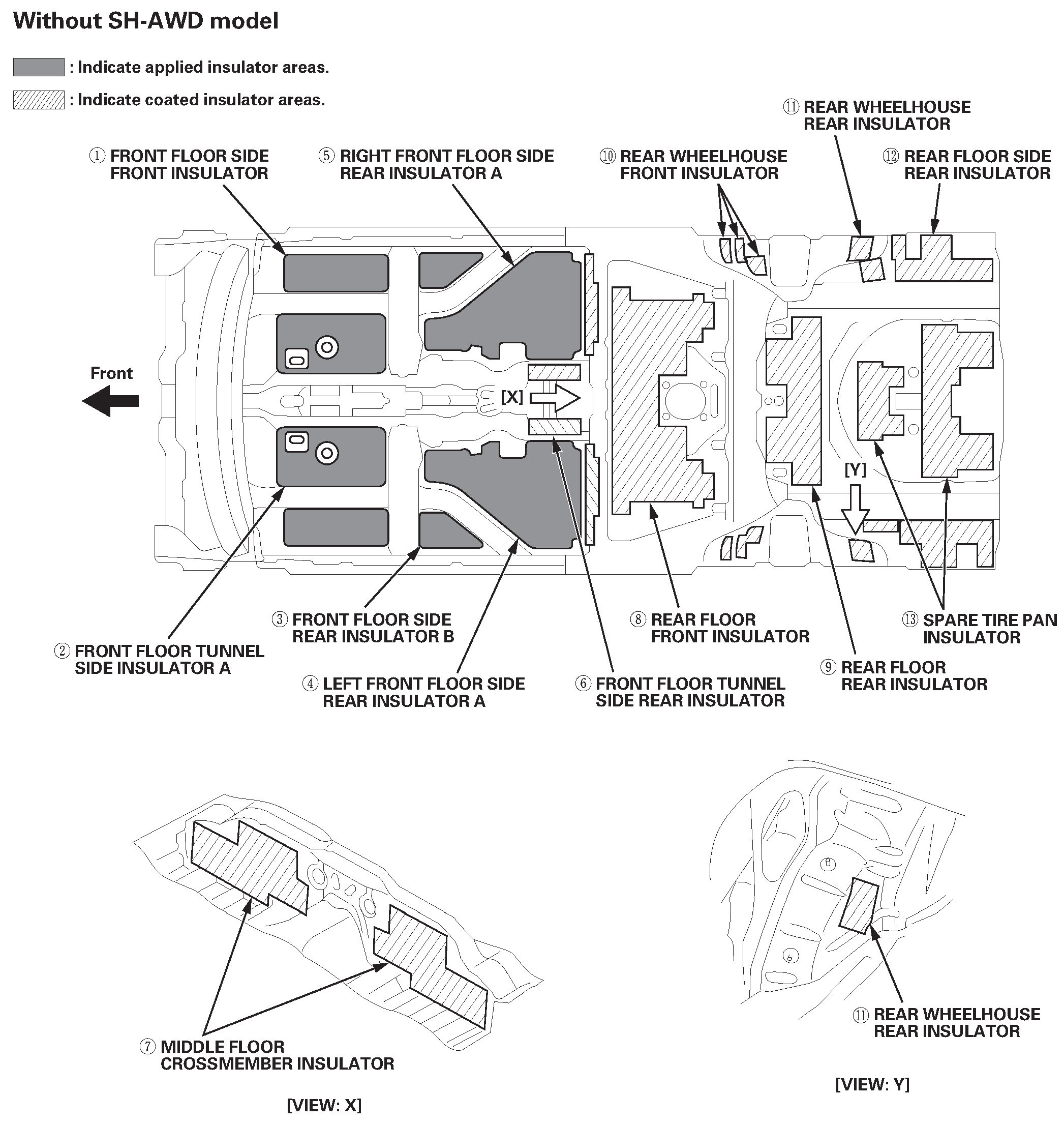

Insulator Locations

- Applied insulator: Cut new insulators, and apply them in areas indicated in this illustration.
- Coated insulator: Apply sealer which has soundproof and vibration-proof properties in areas indicated in this illustration.

NOTE: Before applying, clean and degrease the floor.

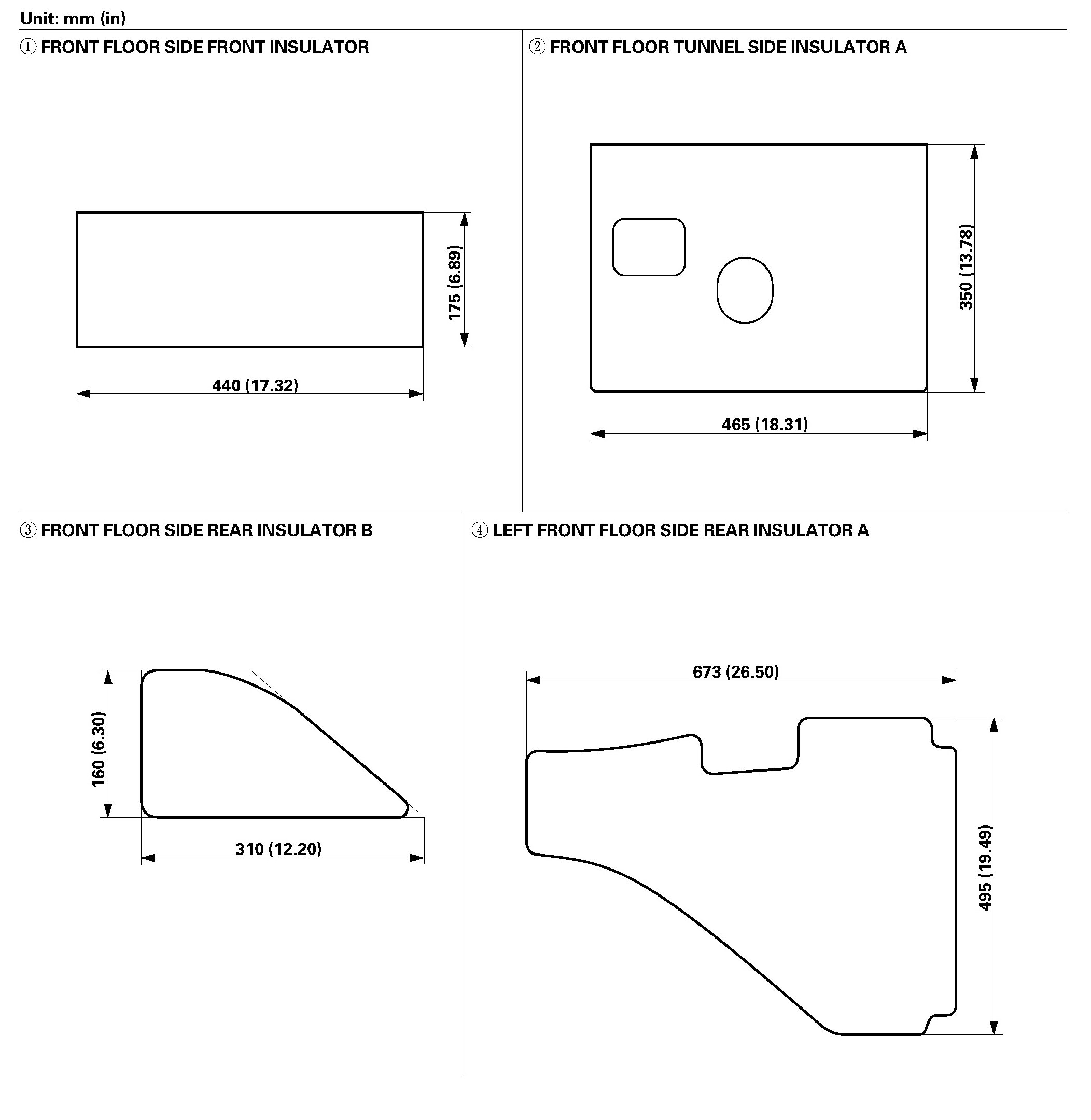

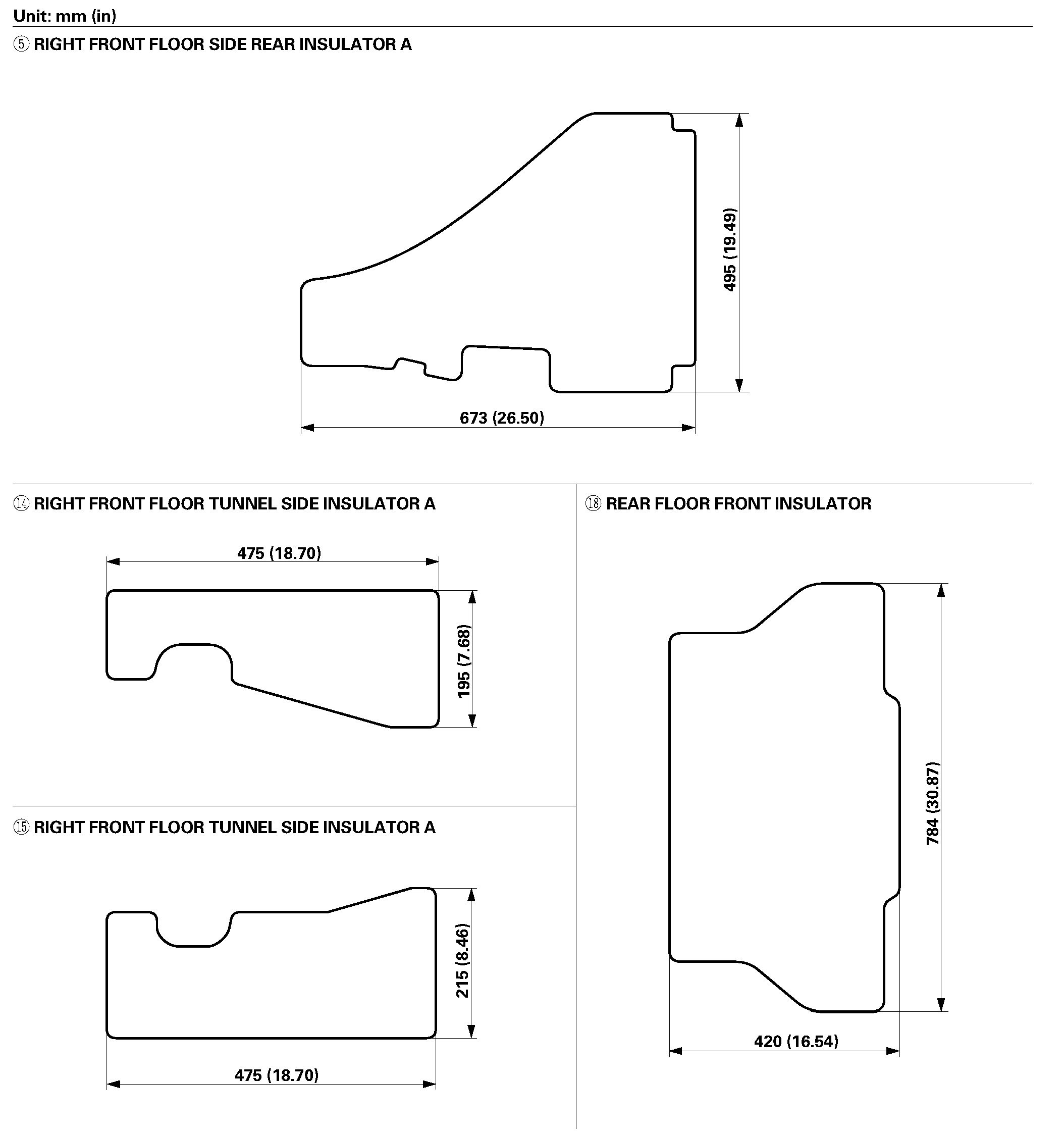

Insulator Sizes
