BSI Control Unit Connector View (BSI System)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

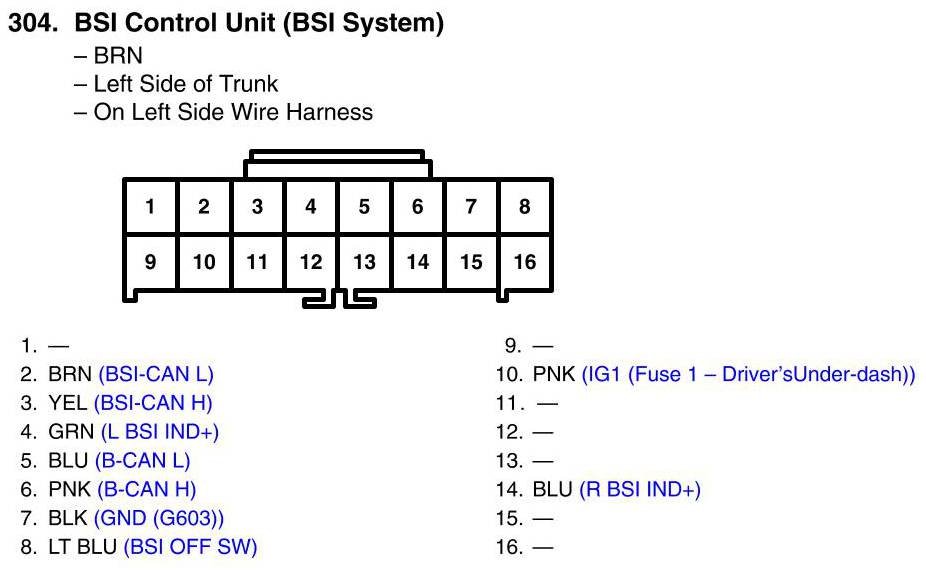

BSI Control Unit Connector View (BSI System)
