Remote Slot Control Unit (Keyless Access) Connector View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

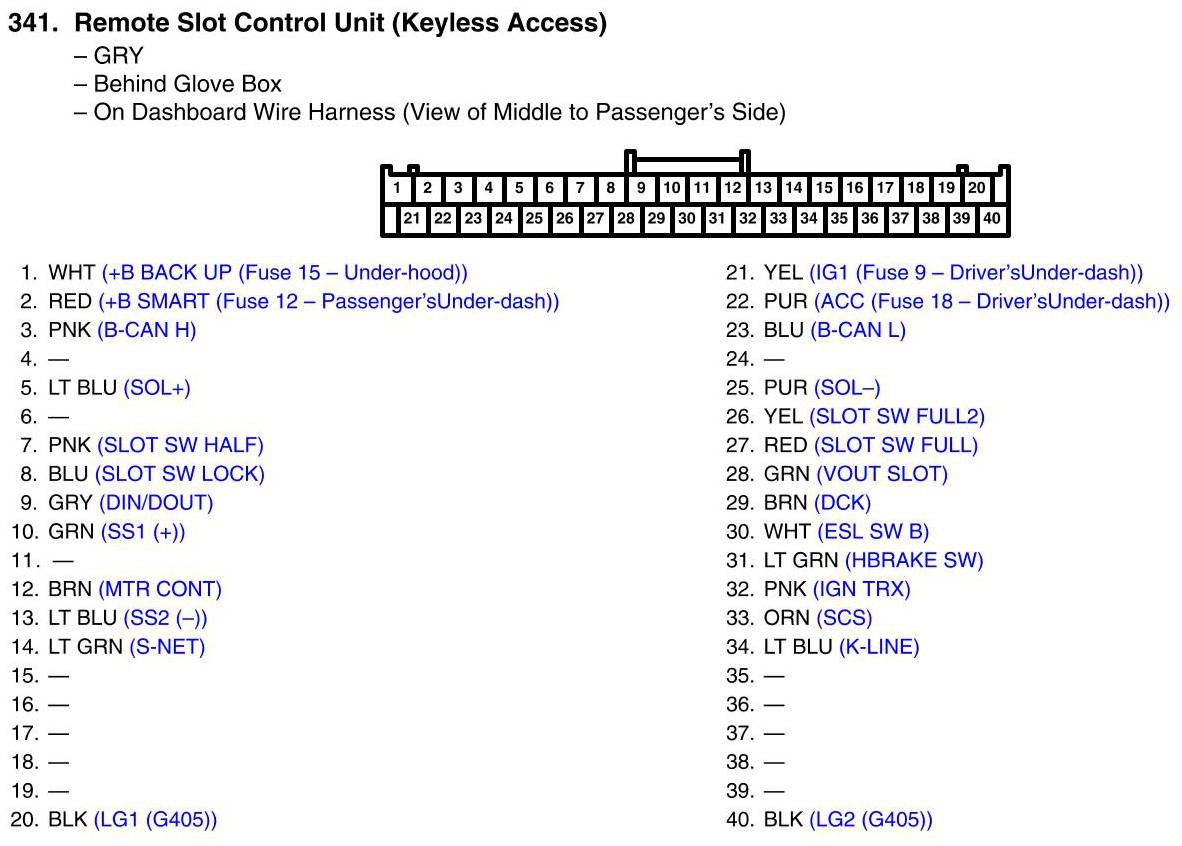

Remote Slot Control Unit (Keyless Access) Connector View
