Climate Control Unit Removal/Installation

Climate Control Unit Removal/Installation

1. Remove the passenger's dashboard undercover Passenger's Dashboard Undercover Removal / Installation.

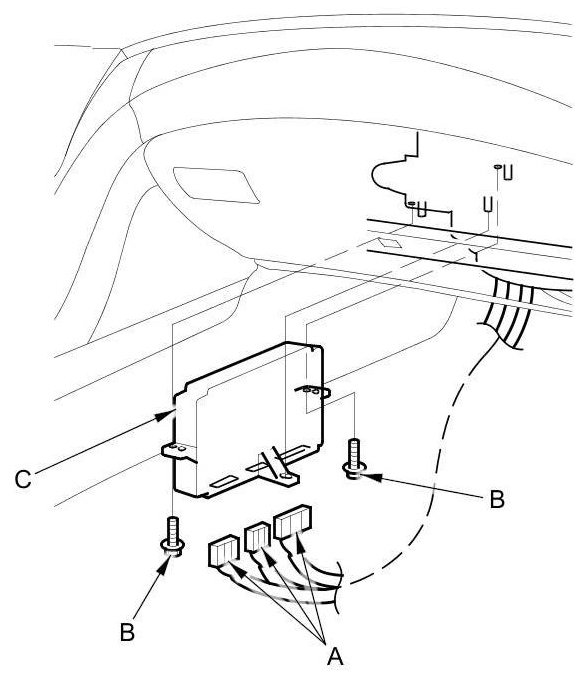

2. Disconnect the connectors (A). Remove the bolts (B) and the climate control unit (C).





3. Install the climate control unit in the reverse order of removal. After installation, operate the various functions to make sure they work properly.

4. Run the self-diagnostic function to confirm that there are no problems in the system.
