Relay And Control Unit Locations - Engine Compartment
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

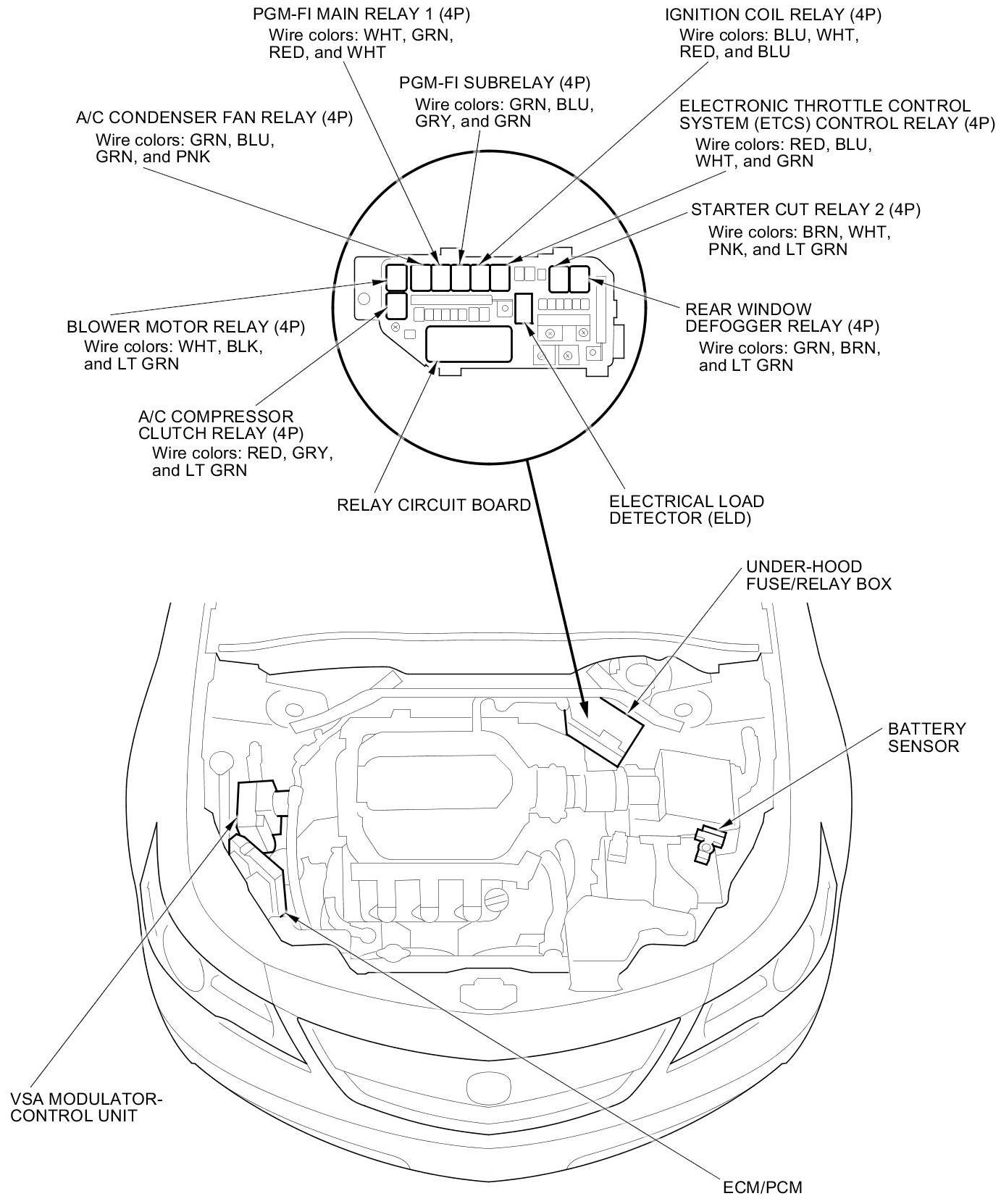

Relay And Control Unit Locations - Engine Compartment
Relay and Control Unit Locations - Engine Compartment
