EGR Tube: Service and Repair

EGR Pipe Replacement

1. Raise the vehicle on a lift.

2. Remove the splash shield Front Splash Shield Replacement.

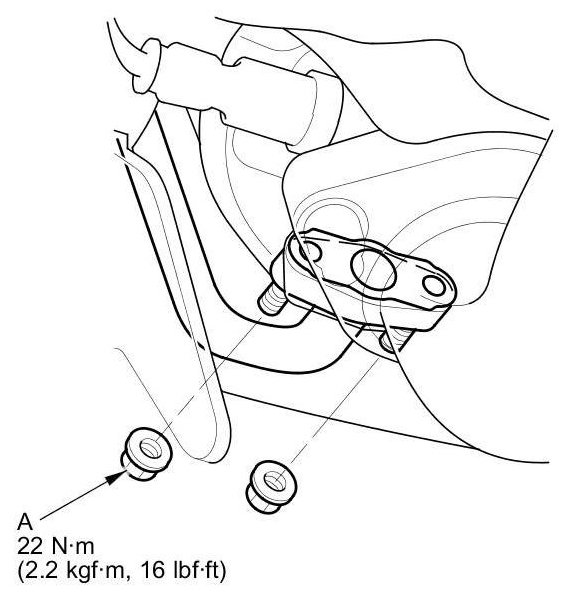

3. Remove the mounting nuts (A).

4. Lower the vehicle.

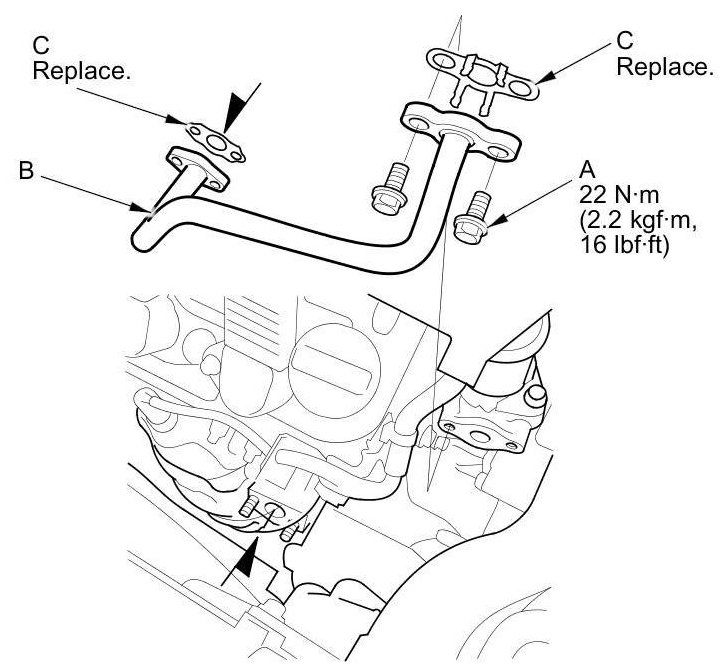

5. Remove the mounting bolts (A).

6. Remove the EGR pipe (B).

7. Install the parts in the reverse order of removal with new gaskets (C).
