Intake Manifold

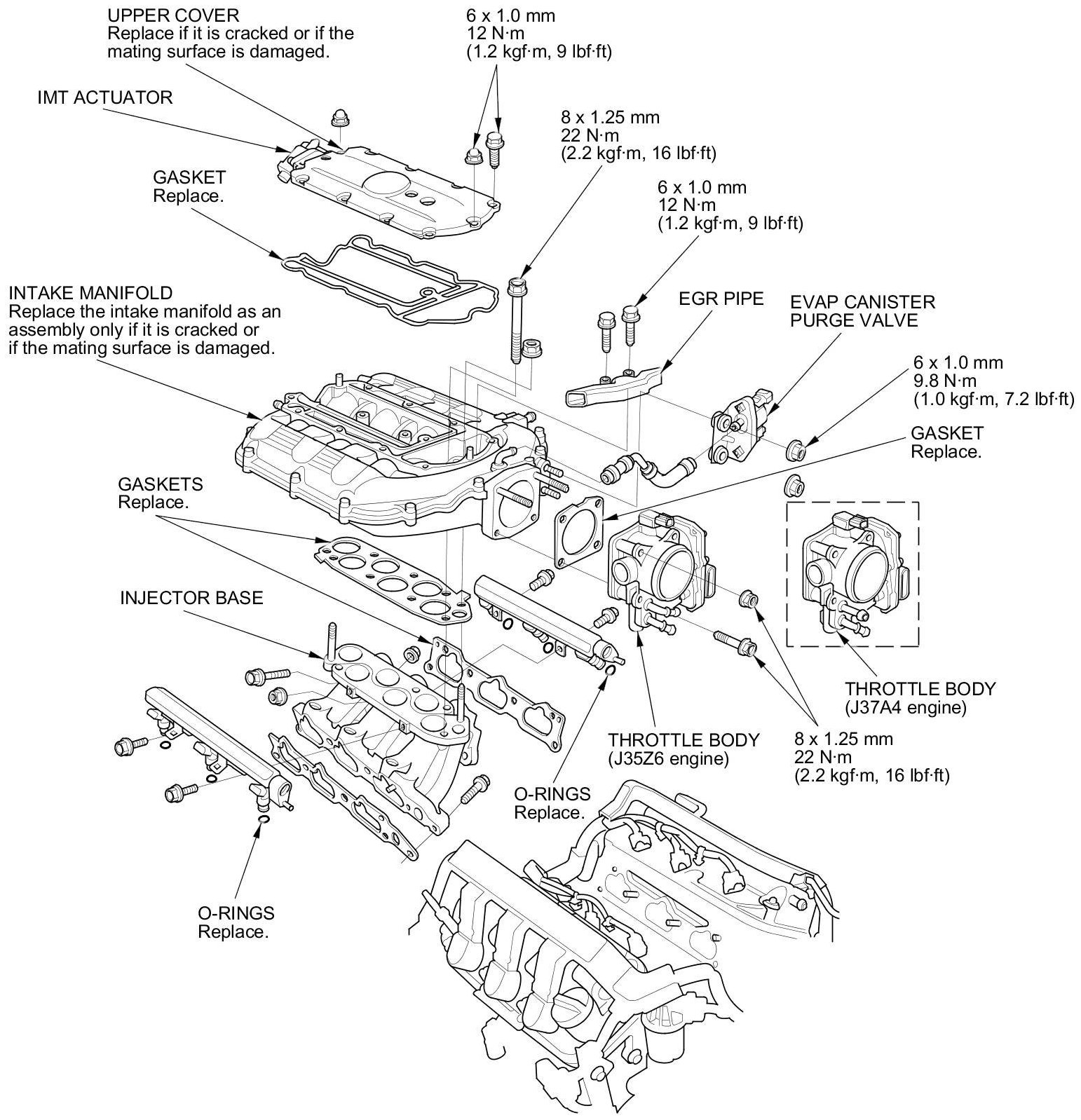

Exploded View

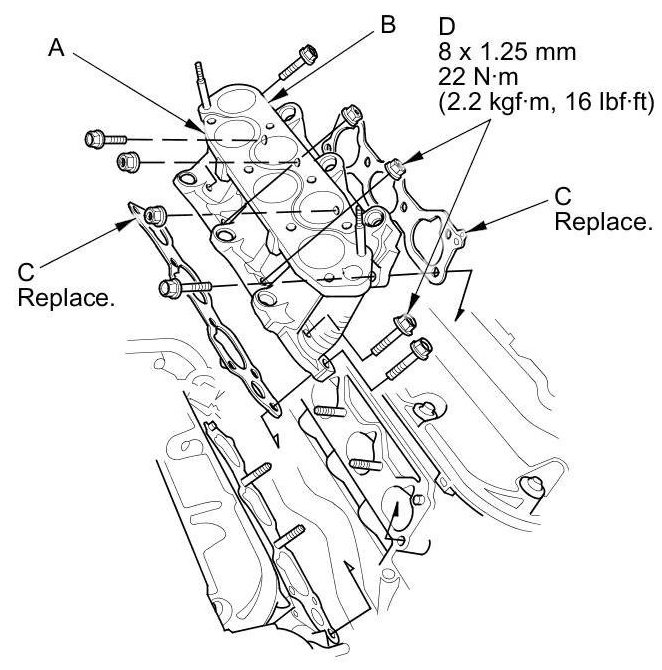

Injector Base Fasteners 8 X 1.25 mm 22 Nm (2.2 kg-m, 16 lb-ft)
Tighten in a crisscross pattern in three steps, beginning with inner nuts

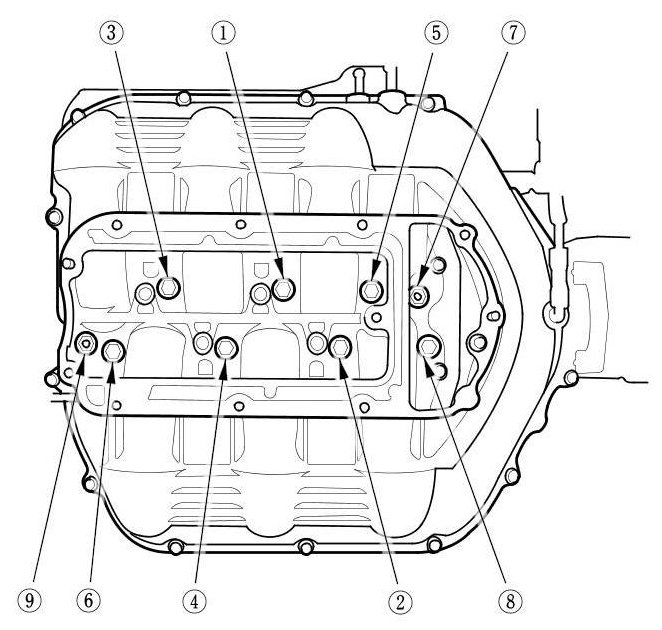

Intake Manifold Fasteners 8 X 1.25 mm 22 Nm (2.2 kg-m, 16 lb-ft)
Tighten sequentially in three steps

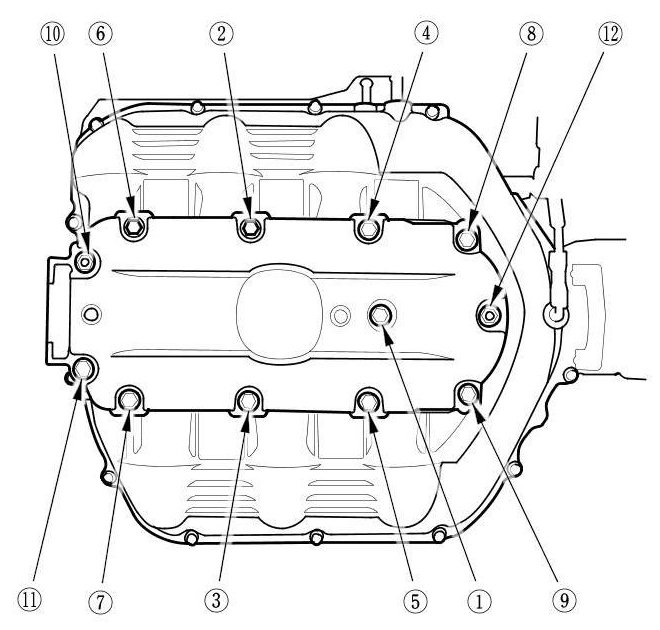

Upper Cover Bolts 6 X 1.00 mm 12 Nm (1.2 kg-m, 9 lb-ft)
Tighten sequentially in three steps





Throttle Body
Tightening Torque 22 Nm (2.2 kgf-m, 16 ft lbs)
